KAB-SET-DF19-20S-FI-S20S-0500RK

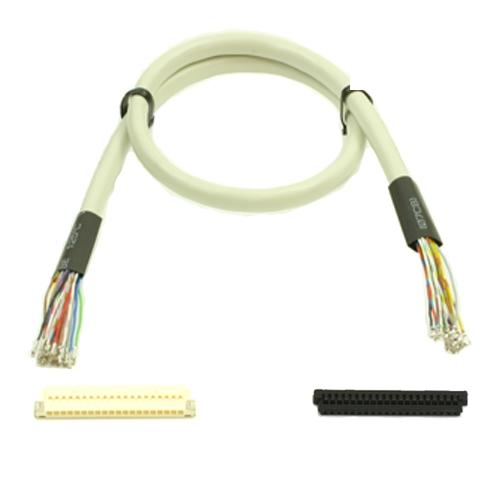

Wire colour code This cable set allows a quick and easy connection between a display with a STM connector P24013P20 and a graphics board connector FI-S20S. We supply a 20-pin round cable with a STM P24013P20 connector (Hirose DF19-G compatible) for side 1. For side 2 we supply a FI-S20S connector. The cable has mounted crimp contacts on both sides and will be supplied unplugged. The connectors can easily be assembled in the corresponding housings according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples, the prototype construction or very small series.

side 1: STM P24013P20 ** unplugged **

side 2: FI-S20S ** unplugged **

20-pin, OKI 2 x 10-pin, highly flexible round cable, twisted pair, shielded, AWG28, length = 500 mm

weight: 28 g

Key Features

• small quantities available from stock
• individual assembling on both sides possible
• different lengths available on short notice
• shielded
• with twisted pair
• suitable for LVDS and DVI
• this cable will be supplied unplugged on both sides including matching connector housings!

Product Notes

This cable fits to the following pin headers: DF19G-20P-1H, DF19K-20P-1H, DF19L-20P-1H, DF19KR-20P-1H, DF19-20P-1V, GT100-20P-LS-SMT, CNT245-20221, CNT245-20211, HS89200, HS90300, MSB24013P20, IP100-C20O-C15, 20268-020E, P24013P20 / MSB24013P20HA, MSB24013P20A, 20230-020B-F, 20230-T20-F, 20230-W20B-F, 107A20-0021RA-G3-R, 20268-020E-12E, CP100-S20G-H16, TU1213HNO-20

The following displays will be supported: B084SN02, B084SN03, B104SN02, B104SN02H, B121EW01, B121EW01V1, B121EW03, B121EW04, B121EW07V0, B133EW01, G065VN01, G070VW01, G084SN02, G084SN03, G084SN03V0, G084SN03V2, G084SN05, G084SN05V, G084SN05V1, G084SN05V1, G084SN05V2, G104SN02, G104SN03, G104SN03V1, G104SN03V2, G104SN05, G104VN01, IAUX61, IAUX61F, IAXG02C, ISTX88, LB104S01, LB104S01-TL01, LB121S03, LB121S03-TL01, LC300W01-C5, LP104S5-C1, LP121WX1, LQ201U1LW11Z, LTA104S1-L01, LTD121C32S, LTD121C33S, LTM07C388, LTM08C351L, LVM104XSB-01, LVM121XSB-411, LVM121XSB-411-L01, PD035VL1, PD064VL1, LP104S5C1, LTA121C250F, LTA121C33SF, LT104AC36100, LT084AC37000, LTA084C271F, G104SN02V1, LT084AC37000, LT104AC36100, LT104AC36000, LT121AC25500, LT121AC33W00, LT104AD18900, LTA084C271F, TM104SDH02, AM-800600M3TNQW, AM-800600LTNQW, LTA104D182F, LT089AC29000, LT121AC33W00, LT104AC36100, LT065AC57200, 97G104S2N2F-2, 97G084S5N5F-2, AM-800600K7TMQW-TA1H, G084SN05 V9, AM-800600M3TNQW-T02H, G104SN02 V2, AM-640480G2TNQW-TA0H, AM-1024768TTMQW-00H, G104AGE-L02, AM-1024600K2TMQW-T02H, LQ121X3LG02, TX31D45VM, TCG121WXLPAPNN-AN20, TCG101WXLPAANN-AN20, DLC0700FDG-T-2, AA104VJ12, AM-1024768T1TMQW-T30H, NL8060BC21-11F, NL8048AC19-14F, NL8048AC19-13, AA070ME01-DA1, G104S1-L01, AA090TB01-DA2, AM-1280800P2TZQW-00H, TCG101WXLPAANN-AN20, OT070MADDLV-10, OT070MADDLV-11, OT070MADDLT-14, OT084ISUDLV-00, OT084ISUDLV-02, OT084ISUDLV-03, OT084ISWDLV-00, LQ084S3LG03, G101STT01.0, FX1001P1DSSWMG01, G104STN01.0, OT104BSWDLV-H0, G150XTN03.5, G150XTN03.6, G150XTN06.0, AM-1280800P3TZQW-00H, G084SN03V3, G084SN03 V3, G104SN03 V5, G104VN01 V1, G133IGE-L03, AM-640480G4TNQW-A0H, AM800480R3TMQW-ACH, AM-800600C4TMQW-A1H, AM-800600M3TNQW-02H-A, AM-800600K7TMQW-A1H, AM-800600K2TZQW-00H, AM-800600MTMQW-A4H, G104S1TS0, G104AGE-L02, TX38D25VM0CAA-3, G150XGE-L04, G150XTN03.1, TX26D200VM2BAB, NL10276BC20-18C, TCG121XGLPBPNN-AN40, LQ104V1LG81, TCG121WXLR, NL128102AC26-01, NL6448BC33-71C, TX31D200VM0BAA, AM-800480RJTMQW, TX23D200VM0BPA, ETML1010G1DKA, TX26D207VM0AAA, TX20D200VM2BAB, TX26D200VM5BAA, TX20D207VM0AAA, TX23D202VM0BAA, TX23D203VM0BAA, NL6448BC20-30F, NL6448BC20-30D, NL6448BC20-30C, TM070JVHG33-01, NL8048BC19-02C, NL10276BC16-06, NL8048BC24-12, NL8048BC24-09, TM101JDHG32-00, TM101JDHG32-01, NL10276BC20-18F, NL12880BC20-07F, NL8060BC31-51C, TM101JVHG32-01, TX16D207VM0BAA, TX20D208VM0BAA, TX20D208VM0BAB, TX18D211VM0BAA , TX18D212VM0BAA, TCG104VGLACANN, TX26D211VM0BAA, TX26D211VM0BAB, ADB18211, ADB18212, TX31D207VM0BAB, TX31D207VM0BAA, TX20D207VM0AVA, P1040XGF1MA00, TX18D216VM0BAA, TX18D216VM0BAB, TX27D201VM0AAB, TX27D201VM0AAA, TX16D207VM0BPA, NL6448AC18-11D, TCG121XGLPAPNN-AN20‎, TCG121XGLPAPNN-AN30, DD-0700-ME01, DD-0700-MC01, DD-0700-ME11, DD-0840-XE01, DD-0840-XE11, P0650VGF1MA00, P0650VGF1MA10, P1210XGF1MB00, TX18D216VM0BAC-2, G121STN02.1, TX27D200VM0AVB, P1210XGF1MA01, P0800WVF1MA00, COM121H9M21SSS, COM121H9M18SSS, G070VW01 V012, TM104TDGP10-00, P0840XGF1MB00

Matching LED backlight cable: KAB-SHLP-10-0500LI, KAB-FI-S06S-0500LI
