KAB-SET-DF19-20S-DF14-XXS-0500RK

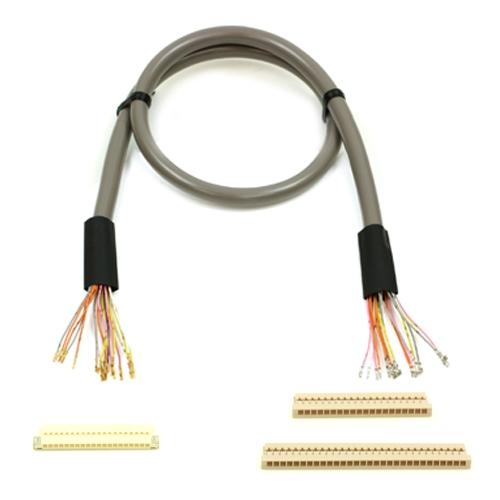

Wire colour code This cable set allows a quick and easy connection between a display with a STM connecor P24013P20 and any graphics board connector of the Hirose series DF14 20- or 30 pin. We supply a 20-pin round cable with a STM connector P24013P20 on side 1. Two Hirose connectors DF14-20S-1.25C, DF14-30S-1.25C for the second side are included. The cable has mounted crimp contacts on both sides and will be supplied unplugged. The connectors can easily be assembled according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples, the prototype construction or very small series.

side 1: STM 24013P20

side 2: DF14-20S-1.25C, DF14-30S-1.25C

both sides unplugged, 20-pin, highly flexible round cable, LTG-DCY, twin stranded, UL2560, AWG28, shielded, l = 500 mm

operating temperature: -20 °C to 85 °C

weight: 27.29g

Key Features

• small quantities available from stock
• individual assembling on both sides possible
• different lengths available on short notice
• shielded
• twisted pair
• suitable for LVDS
• this cable will be supplied unplugged on both sides including matching connector housings!
• This cable fits to the following pin headers:
• DF19G-20P-1H, DF19K-20P-1H, DF19L-20P-1H, DF19KR-20P-1H, DF19-20P-1V, GT100-20P-LS-SMT, CNT245-20221, CNT245-20211, HS89200, HS90300, MSB24013P20, IP100-C20O-C15, 20268-020E, P24013P20 / MSB24013P20HA, MSB24013P20A, 20230-020B-F, 20230-T20-F, 20230-W20B-F, 107A20-0021RA-G3-R, 20268-020E-12E, CP100-S20G-H16, 3804K-F20N-10L, CID520D, MSB240420HE (STM)
• Folgende Display werden unterstützt:
• B084SN02, B084SN03, B104SN02, B104SN02H, B121EW01, B121EW01V1, B121EW03, B121EW04, B121EW07V0, B133EW01, G065VN01, G070VW01, G084SN02, G084SN03, G084SN03V0, G084SN03V2, G084SN05, G084SN05V, G084SN05V1, G084SN05V1, G084SN05V2, G104SN02, G104SN03, G104SN03V1, G104SN03V2, G104SN05, G104VN01, IAUX61, IAUX61F, IAXG02C, ISTX88, LB104S01, LB104S01-TL01, LB121S03, LB121S03-TL01, LC300W01-C5, LP104S5-C1, LP121WX1, LQ201U1LW11Z, LTA104S1-L01, LTD121C32S, LTD121C33S, LTM07C388, LTM08C351L, LVM104XSB-01, LVM121XSB-411, LVM121XSB-411-L01, PD035VL1, PD064VL1, LP104S5C1, LTA121C250F, LTA121C33SF, LT104AC36100, LT084AC37000, LTA084C271F, G104SN02V1, LT084AC37000, LT104AC36100, LT104AC36000, LT121AC25500, LT121AC33W00, LT104AD18900, LTA084C271F, TM104SDH02, AM-800600M3TNQW, AM-800600LTNQW, LTA104D182F, LT089AC29000, LT121AC33W00, LT104AC36100, LT065AC57200, 97G104S2N2F-2, 97G084S5N5F-2, AM-800600K7TMQW-TA1H, G084SN05 V9, AM-800600M3TNQW-T02H, AM-640480G2TNQW-TA0H, AM-1024768TTMQW-00H, G104AGE-L02, AM-1024600K2TMQW-T02H, LQ121X3LG02, TCG121WXLPAPNN-AN20, TCG101WXLPAANN-AN20, DLC0700FDG-T-2, MI700J1T-2, AM-1024768T1TMQW-T30H, G104S1-L01, G150XNE-L01, G150XNE-L03, AM-1280800P2TZQW-00H, TCG101WXLPAANN-AN20, OT070MADDLV-10, OT070MADDLV-11, OT070MADDLT-14, OT084ISUDLV-00, OT084ISUDLV-02, OT084ISUDLV-03, OT084ISWDLV-00, LQ084S3LG03, G101STT01.0, FX1001P1DSSWMG01, G104STN01.0, OT104BSWDLV-H0, G150XTN03.5, G150XTN03.6, G150XTN06.0, AM-1280800P3TZQW-00H, G084SN03V3, G084SN03 V3, G084SN05 V904, G084SN05V904, G104SN03 V5, G104VN01 V1, G133IGE-L03, AM-640480G4TNQW-A0H, AM800480R3TMQW-ACH, AM-800600C4TMQW-A1H, AM-800600M3TNQW-02H-A, AM-800600K7TMQW-A1H, AM-800600K2TZQW-00H, NL13676BC25-03F, LQ121K1LG52U, NL13676AC25-05D, TM150TDSG71, NL10276AC30-52C, NL13676BC25-07F, G150XGE-L06, LQ150X1LW12, TM121SDS01, TM121TDSG02, G150XGE-L04, PH102768T-001, G150XGE-L07, NL10276AC30-48D, G150XTN03.0, NL13676BC25-03F, LQ121K1LG52U, NL13676AC25-05D, AM-800480RJTMQW, G150XAN02.1, HM150X01-N01, NLB121SV01L-01, NLB121XG01L-01, NL10276BC30-39, NLB150XG01L-01, G150XAN01.0, IDK-1115P-40XGC1E, LQ064X3LW02, PH102600T003-IBA, P1500XGF2MA00
• This cable fits for the following board:
• PICO-BT01
