KAB-SET-DF14-20S-DF13-XXDS-0500RK

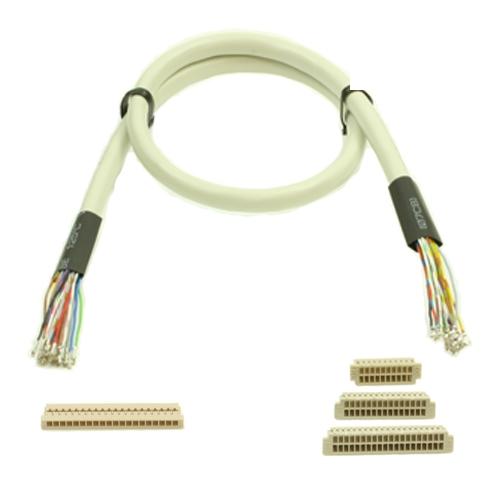

This cable set allows a quick and easy connection between a display with a STM connector DF14-20S-1.25C and any graphics board connector of the STM series DF13, 20- ,30- or 40-pin. We supply a 20-pin round cable with a STM connector DF14-20S-1.25C on side 1. Three STM connectors DF13-20DS-1.25C, DF13-30DS-1.25C, DF13-40DS-1.25C for the second side are included. The cable has mounted crimp contacts on both sides and will be supplied unplugged. The connectors can easily be assembled according to your cable layouts to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples, the prototype construction or very small series.

side 1: DF14-20S-1.25C

side 2: DF13-20DS-1.25C, DF13-30DS-1.25C, DF13-40DS-1.25C

both sides unplugged, 20-pin, highly flexible round cable, twin stranded, UL2560, AWG28, shielded, l = 500 mm

operating temperature: -20 °C to 85 °C

weight: 31.9 g

Key Features

• small quantities available from stock
• individual assembling on both sides possible
• different lengths available on short notice
• shielded
• with twisted pair
• suitable for LVDS
• this cable will be supplied unplugged on both sides including matching connector housings!
• This cable fits to the following pin headers:
• DF14-20P-1.25H, MSB240420, MSB240420-E, P240420, GT123-20P-H16, GT123-20S-CS, 3804-F20N-06R, CWY20G-A0D1T, 3804K-F20N-10L, CID520D, A1252WV-SF2X20PD01, MSB240420HE (STM)
• The following displays will be supported:
• AA150XN01, AA150XN02, G150XG01, G150XG02, G150XG03, LB150X02, LB150X06, LC150X01, LC150X01-A3, LC150X01-SL01, LC150X02, LC150X02-A4, LC150X02-TL01, LC151X01-C3, LC171W03, LC171W03-A4, LC171W03-C4, LC230W01, LC230W01-A2, LC260W01, LC260W01-A5K1, LM150X08, LQ150X1LG45, LQ150X1LG55, LQ150X1LGB1, LQ150X1LGN2, LQ150X1LGN2A, LQ150X1LGN2E, LQ150X1LW71N, LQ150X1LW72, LTM150XH, LTM150XH-L01, LTM150XO-L01, M150XN07, M170XW01, NL10276BC30-17, NL10276BC30-18, NL10276BC30-18C, NL10276BC30-32D, NL10276BC30-33D, NL128102AC31-02, NL12876BC26-25, T140VN01, T201VN02V0, T-51863D150J-FW-A-AA, T-51863D150J-FW-A-AB, T-51863D150J-FW-A-AD, T-51863D150J-FW-A-AE, G150X1, G121SN01, G121SN01V1, G121SN01V2, G121SN01V3, G150XG03V2, G121SN01V4, NL10276BC30-33D, LQ150X1LW71N, LQ150X1LG82, G150XG02V1, T-55519D150J-LW-A-AAN, G121SN01-V4, NL10276BC30-34D, HT15X15, G121NX01, G150XG01 V3, LQ150X1LG91, SCF0700720GGU12, FG0700K6DSSWBG01, G150XTN05.1, CLAA150XP01Q, CLAA150XP07FQ, CLAA150XP07Q, AC150XA01, AC150XP01, CLAA150XP04, CLAA150XP01PQ, CLAA150XP01PE, LQ150X1LG76, CLAA150XP06 CW, CLAA150XP07 CW, CLAA150XP07Q, CLAA150XP07FQ, G150XG03 V0, G150XG03 V1, M150EW02 V0, M150XN07 V2, M150XN07 V3, MI700J1T-2, G150XNE-L01, G150XNE-L03, T150NB02D01, OT070KGWDLL, OT070PGDDLT-H0, OT070PGDDLT-H1, OT080FSDDLV-H0, OT090AGDDLT-00, OT101CAWDLT-00, OT101DAWDLV-H0, LQ101K1LY05, OT104ASDDLV-02, G121SN01 V402, G121SN01 V403, G121STN01.0, G121XTN01.0, OT121AXWDLV-H0, LQ121K1LG52, LQ121K1LG53, LQ123K3LG01, G150XAN01.1, G150XTK01.0, G150XTN03.2, G150XTN06.2, G150XTN06.3, G150XTN06.4, G150XTN06.8, G150XTN06.9, OT150CXDDLV-H1, OT150ZXUDLV-00, LQ150X1LW95, LQ150X1LW96, LQ150X1LX95, LQ150X1LX96, LQ150X1LX9A, LQ201U1LW31, LQ201U1LW32, G215HAN01.0, G215HVN01.1, JH215WLPNN, LM215WF3-SLC1, LM215WF3-SLK1, LM215WF3-SLN1, OT215BFWDLV-00, OT215ZFWDBL-00, NL12876BC26-32D, G150XAN01.2, G150XTK02.0, G150XTN06.A, G121XN01 V001, G121XN01 V0, NL13676BC25-03F, LQ121K1LG52U, NL13676AC25-05D, TM150TDSG71, NL10276AC30-52C, NL13676BC25-07F, G150XGE-L06, LQ150X1LW12, TM121SDS01, TM121TDSG02, G150XGE-L04, PH102768T-001, G150XGE-L07, NL10276AC30-48D, G150XTN03.0, NL13676BC25-03F, LQ121K1LG52U, NL13676AC25-05D, G150XAN02.1, HM150X01-N01, NLB121SV01L-01, NLB121XG01L-01, NL10276BC30-39, NLB150XG01L-01, G150XAN01.0, IDK-1115P-40XGC1E, LQ064X3LW02, PH102600T003-IBA, P1500XGF2MA00
• The following board will be supported:
• PICO-BT01, D3544
