KAB-SATA-7P-180-90-0150-BL

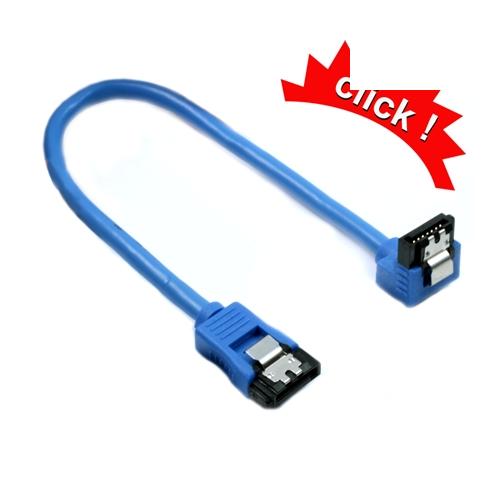

7 pin SATA data cable with latch, as roundcable solution

Site 1: SATA male 90°, 7 pin

Site 2: SATA male 180°, 7 pin

cabel: SATA-round cable, UL2725, blue

lenght = 150 mm (inside) = 210 mm (outside)

operating temperature: -20 °C to 85 °C

weight: 12 g

Key Features

• Greater flexibility and easier laying of round cables
• Highly short design for small and compact applications
• Lockable on both sides, suitable for industrial applications
• available in different lenghts (e.g. 300mm)
• KAB-SATA-7P-180-90-0300-BL
