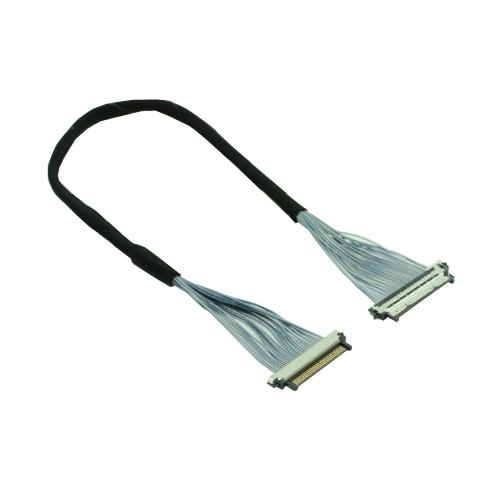

Technical drawing KEL KAB-KEL-USL20-30SS-0150RK-1:1 Technical drawing KEL KEL cable assembly of the USL series with pitch 0.4 mm, cable especially designed for high speed LVDS applications/LCD display control.

side 1: 30-pin IDC connector, straight with pitch 0,4 mm

side 2: 30-pin IDC connector, straight with pitch 0,4 mm

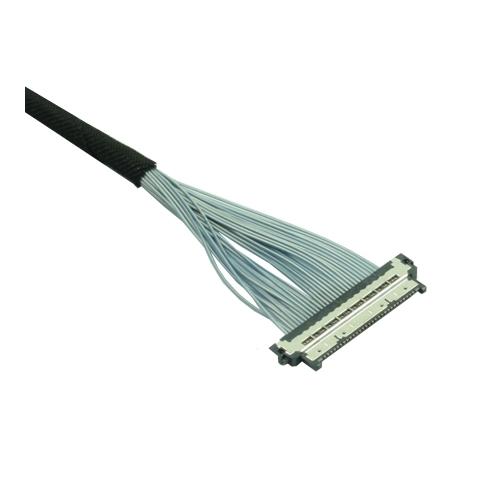

strands AWG42 wrapped with acetate tape, Micro-Coax, configruation 1:1

Key Features

• standard cable length L = 150 mm
• 30 pin. connector, pitch 0.40 mm, bidirectional
• extremely small design, counter part on PCB with max. installation height of 1.00 mm
• safe screening via metal frame
• mechanical detent to avoid vibrations and impacts
• the applied cable is a micro-coaxial AWG42
• customized solutions on request

Product Notes

Suitable for the following camera : Sony 9250

Mating connector: USL00-30L

Mating board: AIVION TL7050

Fits for Sony HD Kamera: FCB-EH3150, FCB-EH3310, FCB-EH3410, FCB-EH6300, FCB-EH6500, FCB-EV7500, FCB-EV7520, FCB-EV5500, FCB-EV7300, FCB-EV7320, FCB-EV7310, FCB-EV5300, FCB-EV7100, FCB-EV7520, FCB-EV9500M, FCB-EV9500L, FCB-EW9500H , FCB-EV9520L, FCB-ER8550/8530, FCB-CR8550/8530, FCB-ER9500

Camera modules from TAMRON : MP1010M-VC and MP3010M-EV

Camera modules from Skoopia : Skoopia 20Z10L, Skoopia 20Z30L, Skoopia 22Z36L-LL , Skoopia 22Z36S-LL, Skoopia 23Z36L-LL, Skoopia G20Z36S , Skoopia G20Z36S-S
