Technical drawing

KAB-IP67-USB-B-F-0050LI-PANEL

Technical drawing USB 2.0 data cable for panel mounting with IP67 Ingress Protection Rating.

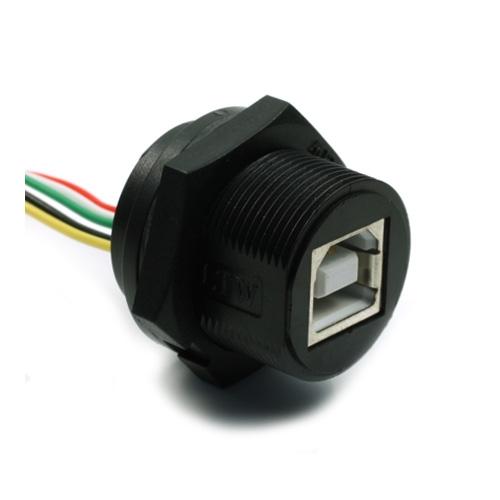

side 1: USB Typ B female IP67 for panelmounting

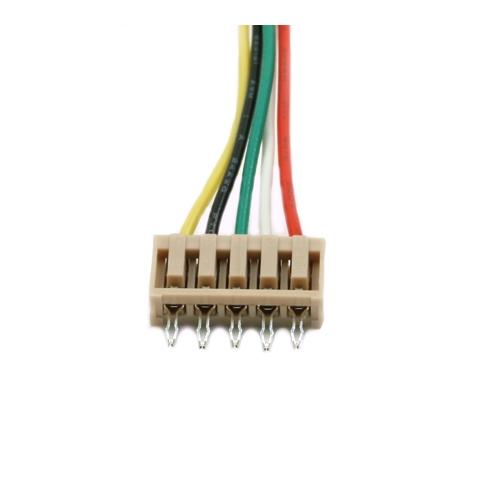

side 2: PCB connector 5-pins for direct soldering with pitch 2.5 mm

cable: stranded wire, AWG24, L = 50 mm

UL iQ™1061

Amphenol LTW: UB-20PMFP-SC8002

You will find auxiliary equipment under the category IP67 accessories .
