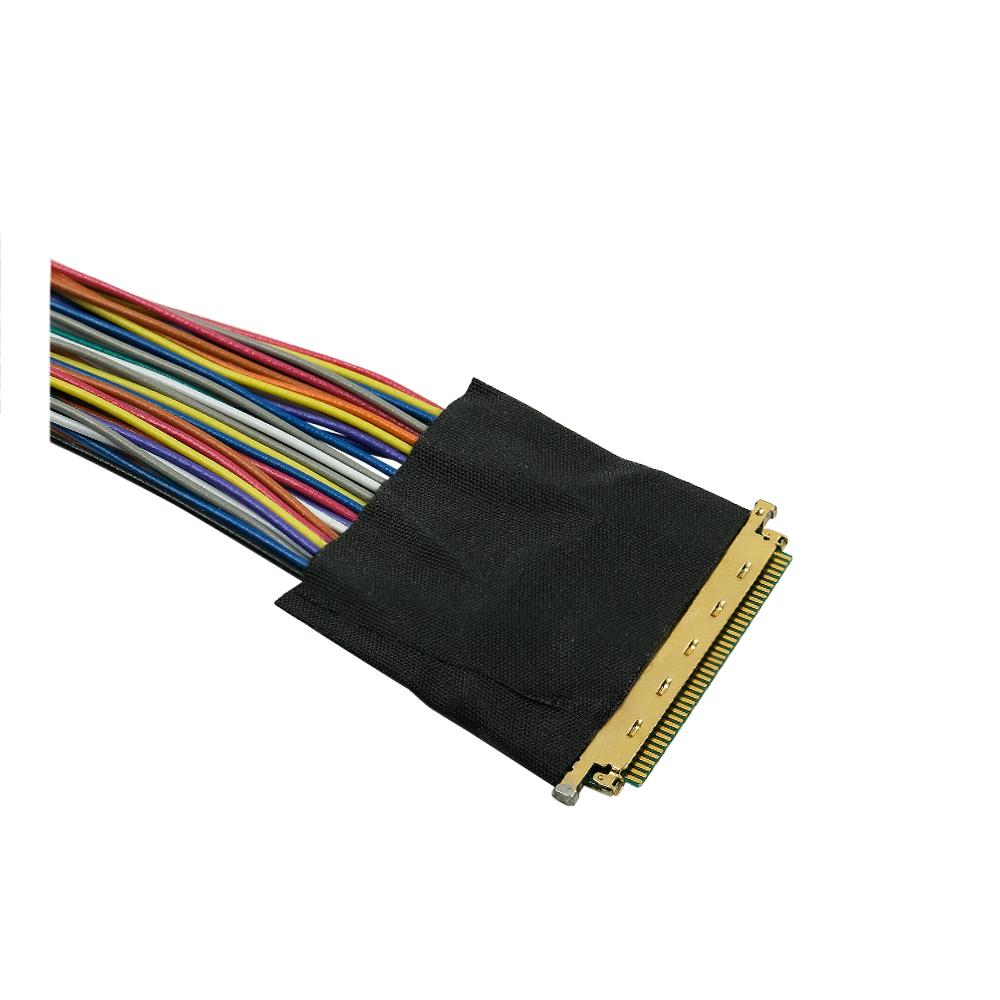

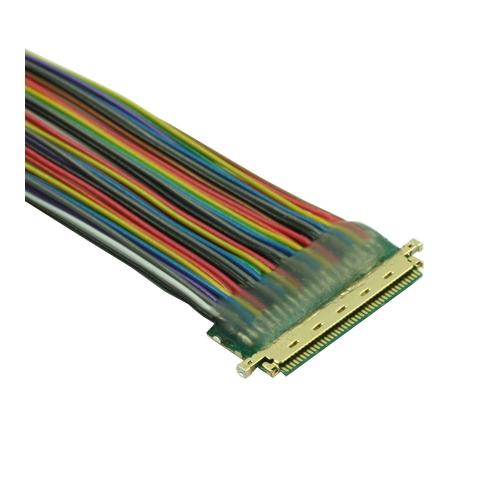

KAB-I-PEX-20453-040T-0500LI-TW-0.60 I-PEX CABLINE VS series, cable for high speed LVDS transmission especially for LCD display control.

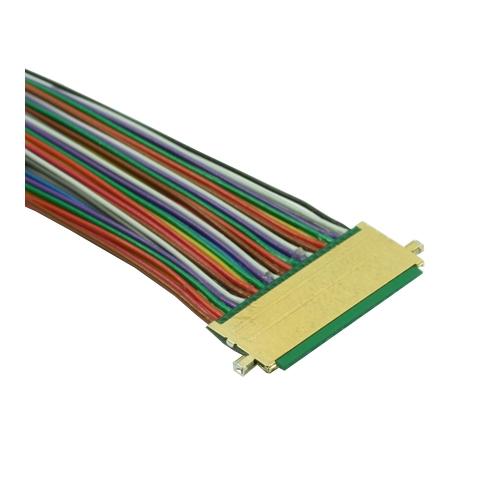

side 1: connector 20453-040T, pitch = 0.50 mm, on PCB adaptor 26 x 9,7 mm

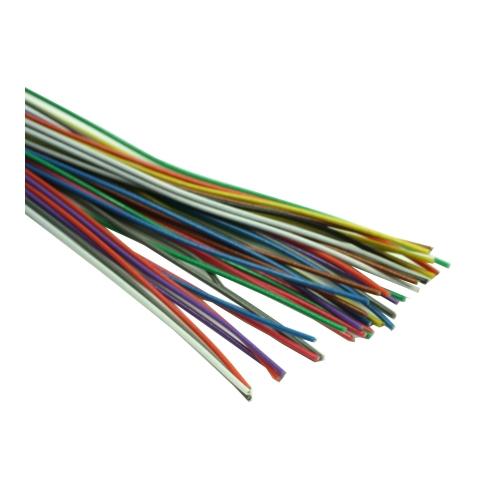

side 2: unprocessed

strands AWG28, outer diameter = 0.60 mm, lenghts 500 mm UL 1571

weight: 24 g

Key Features

• standard cable length 500 mm
• 40-pin connector, pitch 0.50 mm
• extremely small design, counter part on  PCB with max. installation  height of  1.00 mm
• safe shielding by metal frame
• mechanical detent towards vibration and shock
• the pull bar is not mountable
• This cable can also be supplied as bundled cable with micro coaxial conductors a 30 pin or a 40 pin version. e.g.
• KAB-I-PEX-20453-040T-0500-1:1-ROUND
• This cable can also be supplied as laminated micro coaxial conductor a 30 pin or a 40 pin version. e.g.
• KAB-I-PEX-20453-040T-0500-1:1-FLAT
• Depending on the plug connector it matches with the following LCD-displays:
• 20453-030E-12 (30-pin)

Product Notes

Series compatible with: JAE HD1P030MA1, TE 5-2069716-2, STARCONN 111B30-1210TA-G3, Hirose KN38-30S-0.5H, CSTAR LS050-W30B-H10-G, 20453-230T-11

Mating connectors: STM MSAK24025P30 / PK24025P30, FOXCONN GS13301-1110A-7H, JAE HD1S030HA1, STARCONN 111A30-0000RA-G3, I-PEX-20455-030E, I-PEX 20455-040E-12R, UJU IS050-L30B-C10, STARCONN 300E30-0010RA-G3

Fits for Displays: HX104X01-212, HV101WX1, FG100180DSSWNG01, B156HW01 V3 , N156BGE-E41, N173HGE-E11, G101EVN03.0, G101STN01.4, OT101CBWDLV-01, OT101CBWDLV-02, NV133FHM-N52, G156HAN05.0, TM116VDSP02, LM270WR3, TM116VDSP02 - 00, PV156FHM-N20, IPS156A102A, G121ACE-LH2, P1160FHF1MA00, G1010ICE-LH1, G154ICE-LH1

20453-040E-12 (40-pin)

Series compatible with: JAE HD1P040MA1, TE 5-2069716-3, STARCONN 111B40-1210TA-G3, Hirose KN38-40S-0.5H, CSTAR LS050-W40B-H10-G

Matching connectors: STM MSAK24025P40 / PK24025P40, FOXCONN GS13401-1110A-7H, JAE HD1S040HA1, STARCONN 111A40-0000RA-G3, I-PEX-20455-040E, ACES 50473040, I-PEX-20455-030E, I-PEX-20455-020E, UJU IS050-L40B-C10, STARCONN 300E40-0010RA-G3

Matching pin headers : F62240-H1210A, MSAK24025P40G

Matching displays: B133EW03-V1, B101AW01 V1, B125XW01-V0, N156BGE-L21, B156HW01-V3, TVL-55682D101U-LW-I-AAN, G101EVN01.0, B173RW01_V3, B173RW01, B156HW01 V3, N156HGE-L11_V3.0, DLF1095‐ENN‐A01, UMOH-9113MD-T_V0, G101ICE-L01, TM101DDHG01-00, M101GWN9R2-2, T101UB01D02, T101VB01D01, TM101JDHG30-00, AM1280800N3TZQW-00H, GKIGA1VNGE1E0, ET101000DH6, ET101000DM6, CLAA123FCA3, CLAA123FBA1, CLAA101NC05, CLAA133UA01, CLAA101WJ02, CLAA101WH32 CW, G101EVN03.1, G101EVN01.5, G101STN01.0, G101STN01.2, G101STN01.4, G101STN01.6, G156HCE-L01, NL192108AC13-02D, NL192108BC18-06F, TM101JDHG30-00,  OT101DBWDLTH0, G156HCK-L01, G101ICE-L03, G156HAB01.0, TX34D200VM0BAA, NL192108AC21-01, AM-19201200B1TZQW-T51-A, AM-19201200B1TZQW-00-B, AM-19201080D1TZQW-A1H, AM-19201200G2-T50, LP156UD3, G150XAB03, LP156WFD, G170HAN01.1, B133HAK01.0, TM101JDHG38, PT1280101E-ILMFW-EMC04, MTD1010CZK, MCT101E0W1280800LMLIPS, CH101CLHL-001, LMT101DNLFDW, HY-070MRLA0, NV184QUM-N21, G101EAN02.2, G170HAN01.0, AM-1280800WJTZQW, EV156FHM-N12, PH102600T005-ZAA, PH102768T001-ZAA, PH128800T004-ZFA, PH128800T004-ZFM, PH128800T004-ZZA01, PH128800T004-ZZC06, G156HAB02.4, P0840VGF1MB00, P084VGF1MA00, P1040VGF1MB00, P1010WXF1MA01, P0840VGF1MA00, P1010WXF1MB10

Matching eDP™ displays: B116XAN04.1 HW0A, N173DSE-G31, NL192108AC18-01D, LP156UD1-SPA2, B140XTK01.0, B173ZAN01.0, G156HAN01.0, B116XAN02.3, LP156UD1-SPA2, LTM340YP01, LQ133T1JW19, B156HAN03.0, LQ133T1JW14B, VVX16T020G00, LP140QH1-SPA2, LP140QH1-SPB1, B156XTN05.2, N116BGE-E42, B156XTN05.1 , LQ133T1JW14, LQ133T1JW01, LQ133T1JW02, LP125WH2-TPH1, HSD101PWW1-A, NV116WHM-A20, B133HAN04.0, B156HAK01.0, B133HAB01.0 Board connectors  are usually available from stock: STE-20455-020E-12 (20-pin) STE-20455-030E-12 (30-pin) STE-20455-040E-12 (40-pin) STE-20455-050E-12 (50-pin) on request

Matching backlight cable : KAB-SHR-08-0500LI
