KAB-I-PEX-20373-040-0150COAX

Product catalogue: CABLINE®-SS series Technical drawing: connector 20373

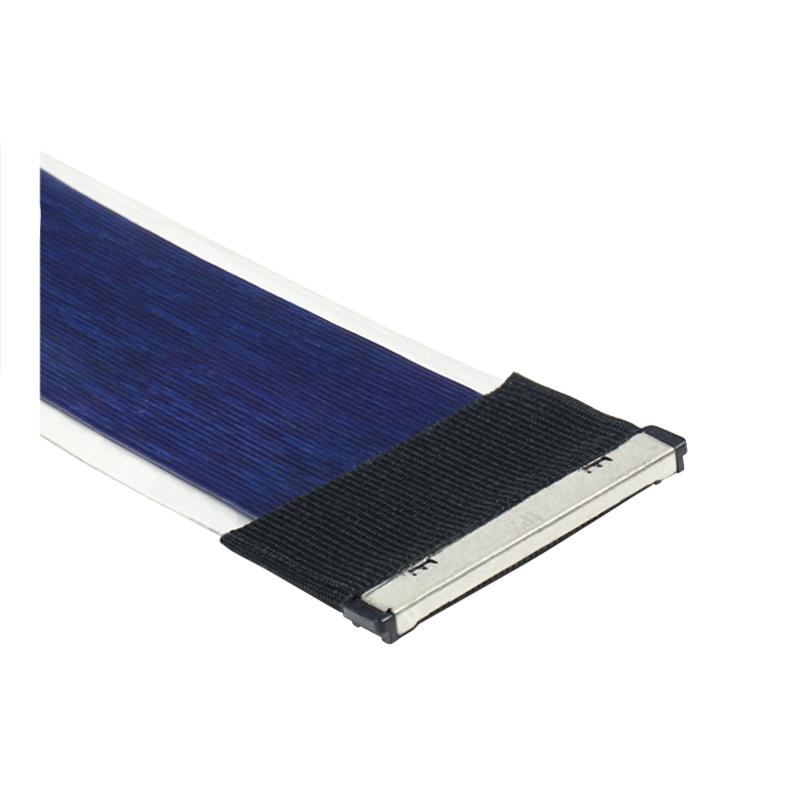

Our brand new micro coax cable assembly with I-PEX Cabline®-SS 20374 connector! Here we present our cable assembly with connectors of the I-PEX CABLINE®-SS series, connector type 20373, for high-speed LVDS applications. This cable is suitable for LVDS devices such as LCD displays, display panels, computer and television screens and most 16:9 screen board-to-wire connections. The I-PEX Cabline®-SS 20373 plug connector with its super-slim design and a plug-in height of only 1.65 mm is ideally suited for connection in small devices. The 40-pin connector with 0.40 mm pitch is mounted vertically at right angles. Connectors of the Cabline®-SS series offer reliable, stable and high-quality data transmission! I-PEX's unique ”W-point“ design creates a highly reliable connection between the plug and the socket. The plug is connected to the receptacle at two contact points by the W-shape, which is much more reliable than the typical single-point contact designs of conventional plugs. (See plug and socket cross section figure in the ). The different part numbers of the individual components of the Cabline®-SS connector can be found in the technical drawing .

Product Notes

side 1: I-PEX Cabline®-SS 20373, pitch = 0.40 mm

side 2: I-PEX Cabline®-SS 20373, pitch = 0.40 mm

cable: AWG40, micro coax, assignment 1:1, L = 150 mm

plugged height: max. 1.85 mm (1.65 mm nominal)

depth: 3.0 mm

pairing type: vertical

halogen-free REACH and RoHS compliant

operating temperature: -40 °C to 85 °C

weight: 3.6 g

Advantages : Highly reliable contact by using I-PEX's unique "W-Point" design. mechanical locking against vibration and shock slim plug design, suitable for through hole mounting safe shielding due to metal frame

wide range of pin numbers are available: 10, 14, 20, 30, 32, 35, 40, 50

Applications (transmission rates are only achieved with micro coax - not with discrete wire): HDMI® 2.0 (6 Gbps), eDP HBR 3 (8.1 Gbps), eDP HBR 2 (5.4 Gbps), eDP (2.7 Gbps), USB® 3.1 Gen 1 (5 Gbps), MiPi Gear 3 (5.8 Gbps), V-By-One HS 1.4 (4 Gbps)

Information on current carrying capacity: 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.25A AC/DC [AWG #40] per contact/up to 50 contacts 0.30A AC/DC [AWG #40] per contact/up to 32 contacts 0.35A AC/DC [AWG #36] per contact/up to 50 contacts 0.40A AC/DC [AWG #36] per contact/up to 37 contacts 0.35A AC/DC [AWG #34] per contact/up to 50 contacts 1.00A AC/DC [AWG #34] per contact/up to 2 contacts Please visit our I-PEX category. Here you will find more cable assemblies with I-PEX connectors. Different part numbers of the individual components of the Cabline®-SS connector: Plug for cable assembly

20380-010T

20380-014T

20380-020T

20380-030T

20380-032T

20380-035T

20380-040T

20380-050T

Plug housing

20273-010T

20273-014T

20273-020T

20273-030T

20273-032T

20273-035T

20273-040T

20273-050T

Plug Metal Cover

2182-10

2182-14

2182-20

2182-30

2182-32

2182-35

2182-40

2182-50

Receptacle

20374-010

20374-014

20374-020

20374-030

20374-032

20374-035

20374-040

20374-050
