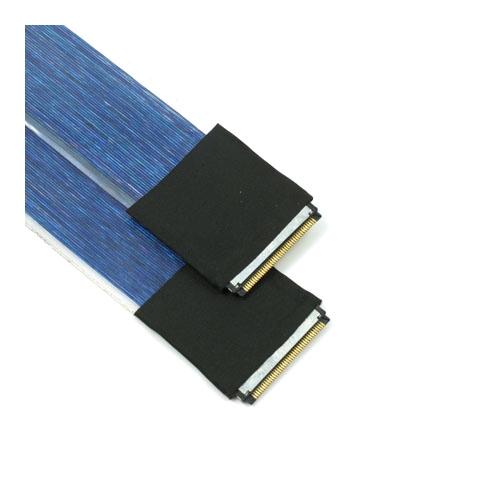

: connector KAB-I-PEX-20345-040T-0100-1:1-FLAT : connector I-PEX CABLINE V series grid 0.4 mm, cable designed for high speed LVDS applications especially for LCD display drives.

side 1: 20345-040T , pitch = 0.40mm

side 2: 20345-040T , pitch = 0.40 mm

micro coax cable flat laminated AWG40, L = 100 mm, 1:1 connection

dimension: 100 (l) x 14.8 (w) x 1 (h) (in mm)

operating temperature: -20 °C to 85 °C

weight: 5 g

Key Features

• standard cable length L = 100 mm
• 40 pin. connector, pitch 0.40 mm, bidirectional
• extremely small design, counter part on PCB with max. installation height of 1.00 mm
• safe screening via metal frame
• mechanical detent to avoid vibrations and impacts
• the applied cable is a micro-coaxial AWG40
• customized solutions on request
• STE-I-PEX-20347-340E-12

Product Notes

Fits to pin header: UJU, ISO050-L40B-C10

Compatible board connectors: 20347-0xxE-xx available ex stock, our part no.

Fits for displays: B101AW01 V1, B125XW01-V0, N156BGE-L21, B156HW01-V3, TVL-55682D101U-LW-I-AAN, G101EVN01.0, B173RW01_V3, B173RW01, B156HW01 V3, N156HGE-L11_V3.0, G101EVN03.1, G101EVN01.5, G101STN01.0, G101STN01.2, G101STN01.4, G101STN01.6, HV133WX1-100, MV238FHM-N10, HV133WX1-100
