KAB-FI-S10S-0500LI

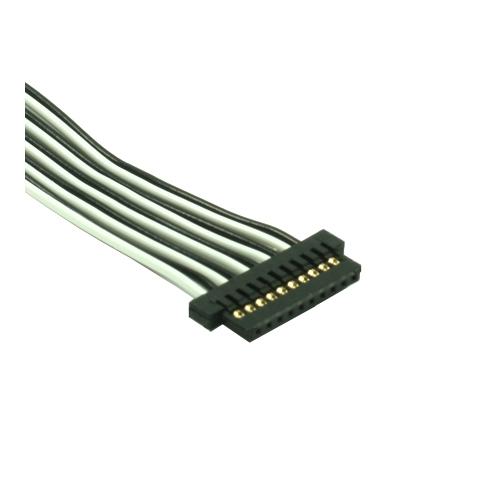

This wiring harness allows a quick and easy connection between a LED-backlight with a connector of the FI-S series and any graphic board connector. We supply single strands with 10 assembled electric contacts and a fitted housing, the second side of the cable is unprocessed. The strands are assembled to allow immediate application. This cable is particularly suitable for samples and small series.

Key Features

• available ex stock
• customer specific assembly
• deliverable in different lengths
• FI-C3-A1-15000
• AWG28
• lenght 500 mm
• UL1061

Product Notes

side 1: FI-S10S, R = 1.25 mm, crimpcontact

side 2: unprocessed

strand: black+white 5 x per color

operating temperature: -10 °C to 80 °C

weight: 7.9 g

The following pin headers fit: FI-S10P-HFE, FI-S10P-HFE-E1500, FI-S10P-HFE-T-E1500, CI4310M1HR0-NH

The following connectors fit: CI4310S0000

The following displays are supported: TCG104VGLP*ANN-AN*25, TCG104VGLACANN, G238HCJ-L02
