: FI-R series Wire colour code

KAB-FI-RE41HL-0500RK

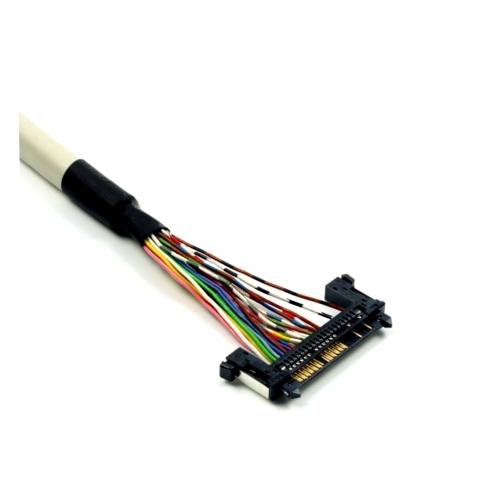

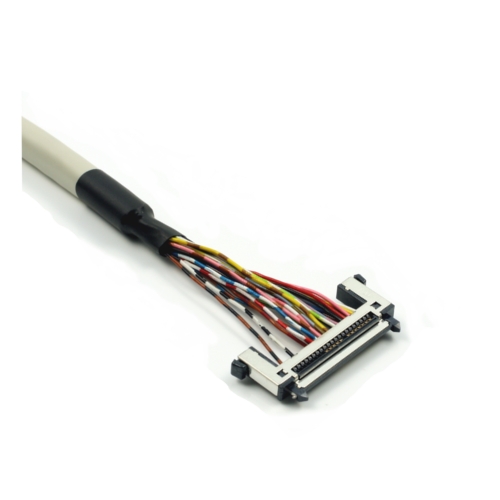

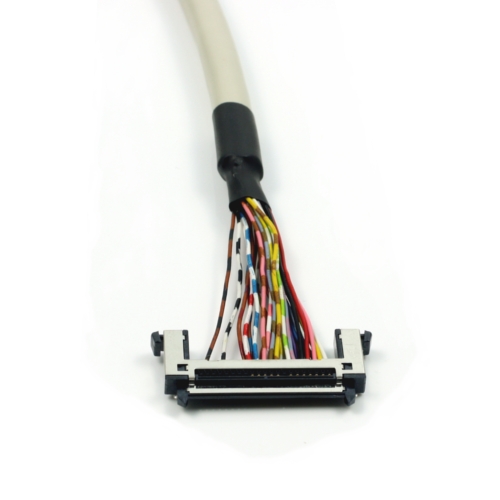

: FI-R series Wire colour code This wiring harness allows a quick and easy connection between a display with a connector of the FI-R series and a graphics board. We supply a twisted pair round cable with assembled crimp contacts and a suitable connector housing. The second side of the cable is unmachined. The connectors according to your cable plans can easily be assembled to achieve an optimum function and allocation of the pairs to the signal structures. The cable is especially suited for samples and very small series.

side 1: FI-RE41HL, 41-pin, pitch = 0.50 mm)

side 2: unprocessed

shielded round cable, twisted pair, AWG28, UL2560 or UL20276 l = 500 mm (or according to your requirement) outer diameter cable 38 pin. = 7.8 mm

operating temperature: -20 °C to 85 °C

weight: 30.1 g

Key Features

• individual assembling possible
• different lengths available
• shielded
• with twisted pair
• adapted for LVDS and DVI
• this cable will be supplied unplugged including a connector housing!
• This cable fits to the following pin headers:
• FI-RE41S-HF, FI-RE41S-HF-J-R150, FI-RE41S-HF-R1500, FI-RE41S-HF-SS-R1500, FI-RE41S-HFA-R1500, FI-RE41S-VF-J-R130, FI-RE41CL, FI-RE41CLS, FI-RE41HJ, FI-RE41-FTS, 187059-41221, MSAKS24020P41, IS050-C41B-C39-A
• This cable fits to the following housings:
• PKS24020P41, kompatibel zu JAE FI-RE Serie
• The following display will be supported:
• LK460D3LZ19, LK460D3LZ19, LK460D3LZ19, LK645D3LZ1U,LK645D3LZ1U, LK645D3LZ1U, NL192120AC25-02, LK645D3LZ29, LC520WU2-SLA2, SV550LAZ, LC550WUD, LK636R3LZ1, LTA460HH-LH3, LK400D3LA24, LTB213QR-L01, LK315D3LZ43Y, LK315T3LA3S, LK460D3LZ36, LC320EUD, LM238WR2-SLA1, LM238WR2-SLC1, G240UAN01.0, G240UAN01.1, LM265SQ1-SLA1, G270ZAN01.0, G270ZAN01.1, G286HAN01.0´, LM290WW2-SSA1, LM310UH1-SLA2, LQ315D1JG93, LQ315D1VG01, LD320EUN-SEM1, LD320DUE-FHB1, P2130UXF1MA10, P2130QXF1MA00, P2130QSF1MA01

Product Notes

Fits for eDP™ displays: M270QAN01.0
