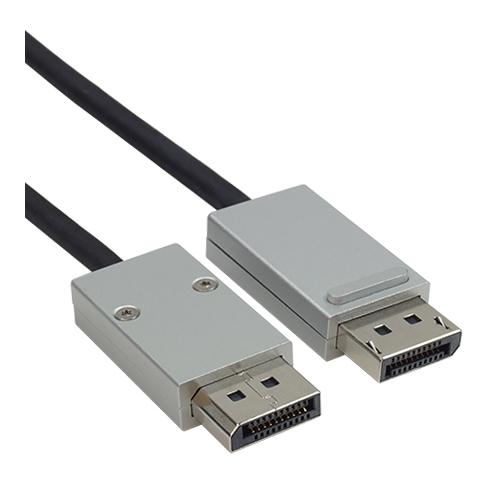

KAB-DP-VM-M-DP-VM-M-xxxxxRK For connecting devices with Displayport 1.2 interface to a PC or notebook. This cable is used for the transmission of audio and video signals and has a corresponding low bending radius due to the diameter of the cable. Exclusive ES&S connector with a high-quality, robust and EMV-proof aluminium metal feeder head.

side1: DP male 19pol, case: AL6061, silver anodized

side 2: DP male 19pol, case: AL6061, silver anodized

displayport cable 1.2 14 polig (5P+4C)

AWG32

shielded with braid and foil

jacket material: FR-TPE, black

halogen-free robust industrial version

outer diameter: 5.00 mm

UL 21104 (80°C, 30V)

Standard lengths are available: 2000, 3000, 4000 or 5000 mm:

KAB-DP-VM-M-DP-VM-M-2000RK

KAB-DP-VM-M-DP-VM-M-3000RK

KAB-DP-VM-M-DP-VM-M-4000RK

KAB-DP-VM-M-DP-VM-M-5000RK

Customized lengths are available on request. Connectors and cable can also be ordered separately: STE-DP-SA-5.00-SET LTG-DP-1.2-5.00-SW
