KAB-DF61-02S-0500LI-AWG24

Series This cable is designed for a quick and easy connection between a LED-backlight display with a connector of the Hirose DF61 series and any other connector. We supply a 2-pin connector assembled with 2 strands and a socket housing. The second side of the cable is unprocessed. This cable is particularly suited for samples and small series.

side 1: DF61-02S-2.2C(13), pitch 2.2 mm

side 2: unprocessed

strands (color as required) (4A) AWG24 l = 500 mm Strands also manufacturable with (3.2A) AWG26 or (5A)AWG22 on request. This cable fits for the following crimp contacts: DF61-2226SCF(41)

DF61-2628SCF

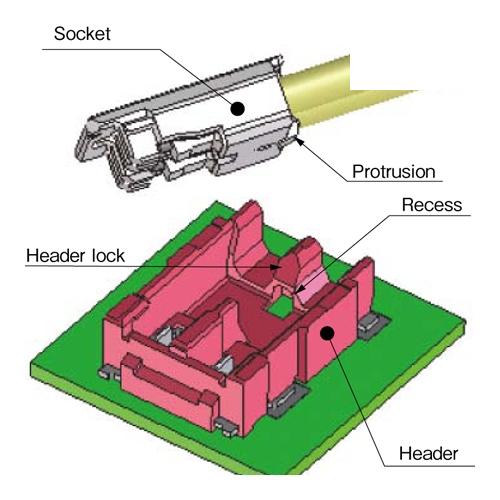

This cable fits for the following SMT header: DF61-2P-2.2V(21) red DF61-2P-2.2V(22) yellow DF61-2P-2.2V(23) beige
