KAB-DF51K-06S-2C-0500LI

Product catalogue: Hirose DF51K series DF51K operation manual Technical drawing | DF51K-22SCF(800) Technical drawing | DF51K-2428SCF(800)

Here we offer you a cable assembly with the brand new connector series DF51K from the manufacturer HIROSE. With this assembly the plugging process is straight, other variants are possible at any time. Connectors of the DF51K series are versatile! They offer maximum flexibility in application, not only with regard to the orientation of the connector. Whether straight or angled, single-row or double-row, gold-plated or tin-plated ... your choice is wide. You can assemble your connector just the way you need it!

Connectors of the DF51K series have numerous advantages: The so-called "center-lock design" enables high-density mounting and is easy to use. The connector is designed to prevent damage during connection. Secure mating with a clearly perceptible click prevents incomplete insertion. The contact reliability is also ensured with long effective mating lengths. The connector has a 2-point contact design.

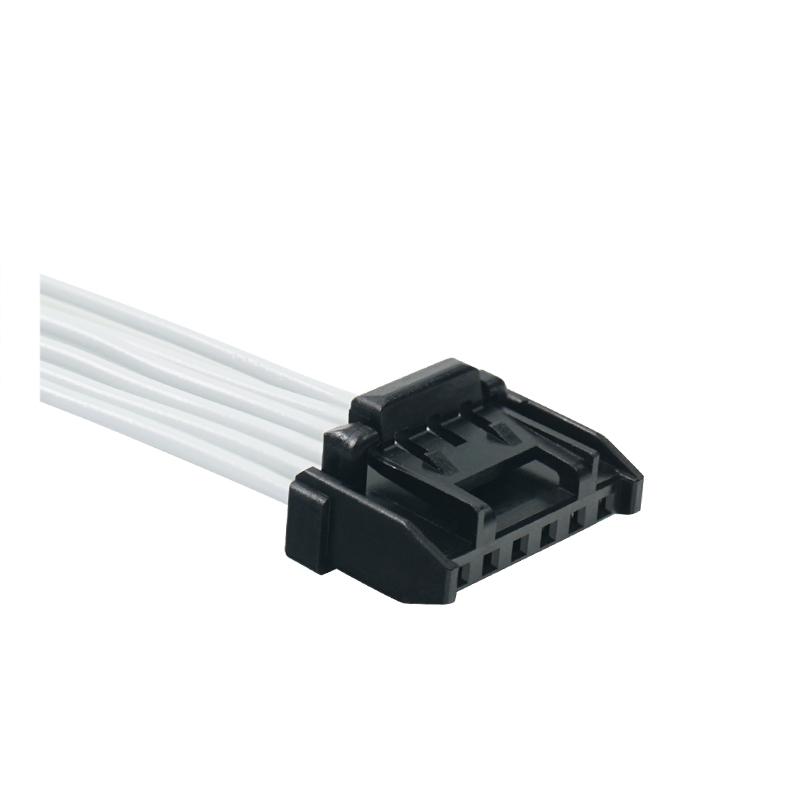

Side 1: DF51K-6S-2C with Center Lock, Pitch 2.00 mm

side 2: cut off smoothly

cables: 6 x stranded wire AWG24, UL1061, white, L = 500 mm

Fields of application: rugged computer equipment industrial environments communication technology in the military sector marine Equipment medical equipment test equipment renewable energy industry We can make cable assemblies with these HIROSE DF51K connectors possible for you: Housing single row: DF51K-2S-2C(800) DF51K-3S-2C(800) DF51K-4S-2C(800) DF51K-5S-2C(800) DF51K-6S-2C(800) DF51K-8S-2C(800) Housing double row: DF51K-10DS-2C(800) DF51K-12DS-2C(800) DF51K-14DS-2C(800) DF51K-16DS-2C(800) DF51K-18DS-2C(800) DF51K-20DS-2C(800) DF51K-22DS-2C(800) DF51K-24DS-2C(800) DF51K-26DS-2C(800) DF51K-28DS-2C(800) DF51K-30DS-2C(800)

Matching crimp contact: DF51K-2428SCF(800), DF51K-2428SCFA(800), DF51K-22SCF(800), DF51K-22SCFA(800)
