KAB-51146-0600-0500LI

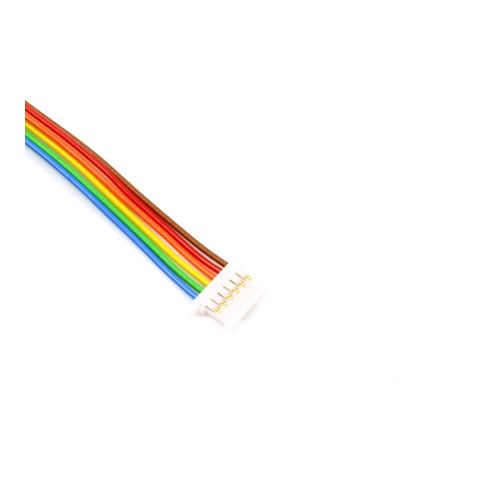

This wiring harness allows a quick and easy connection between a LED-display inverter with a connector of the MOLEX PanelMate™ 51146 series and any other graphic board connector. We supply 6 strands with assembled socket housing. The second side of the cable is unprocessed. This cable is particularly suited for samples and small series.

side 1: 51146-0600 with crimp terminals 50641-8041 or ENTERY H208K-P06N-02B / M002-G07N-02R (compatible with STM P24038P6)

side 2: unprocessed

color strands AWG28 l = 500 mm

operating temperature: -20 °C to 85 °C

weight: 4.1 g

Key Features

• available ex stock
• customer specific assembly
• deliverable in different lenghts
• This cable fits for the following headers :
• MOLEX 53780-0670 / Entery 3808K-F06N-02R / STM P24038P6
• JCTC 11255W90-6P-S-HF
• ADZL 9827WRS-06B-9TV01E
• It supports the following LCD:
• G170EG01-V1, NL13676AC25-01D, NL10276AC30-42C, G150XTN05.1, OT121AXWDLV-H0, OT070MADDLT-14, G150XTK01.1, OT121ABWDLV-H0, G170EG01 V1, G190ETN01.0, G150XTK02.0, NL13676AC25-05D, TM150TDSG71, G170ETN02.1, NL10276AC30-48D, DV215FHM-NN0, MV238FHM-N10, EV238FHM-N11, MV230FHM-N10, AM-19201200G2-T50, AM-19201080ITZQW-00H, IDK-1108R-50SVB1
