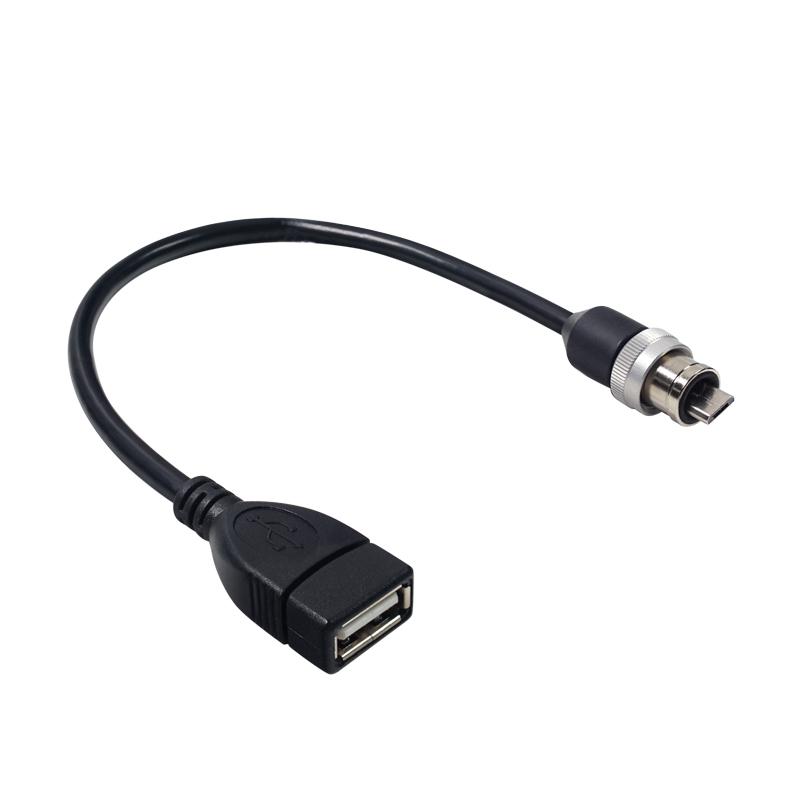

We offer to you: A USB 2.0 cable with a male IP67 Type B micro USB connector. On the other side there is a USB 2.0 Type A female connector.

The IP67 micro plug has an union nut, which ensures a safe screwing possibility to your housing. The plug is dust- and waterproof with the matching through socket and complies with protection class IP67. It is ideal for all installations and applications in industrial environments.

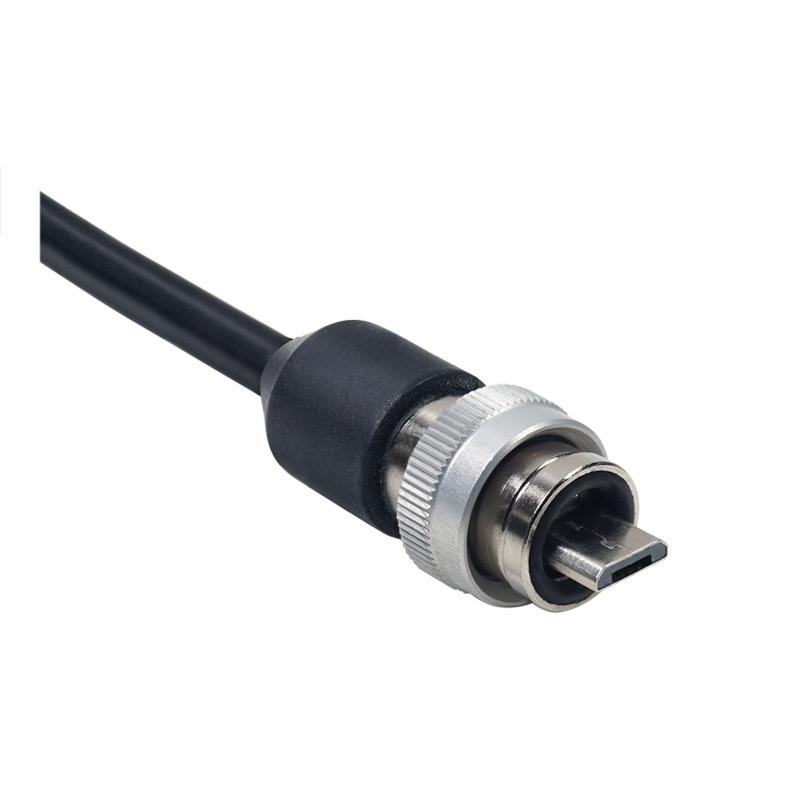

side 1: IP67 USB micro B, male (brass nickel plated) with union nut (M12 thread)

side 2: USB 2.0 Type A, female

round cable: USB 2.0, AWG28, UL2725 (80°C, 30V), black, L = 200 mm (inside)

weight: 25 g

IP67 accessories can be found here .
