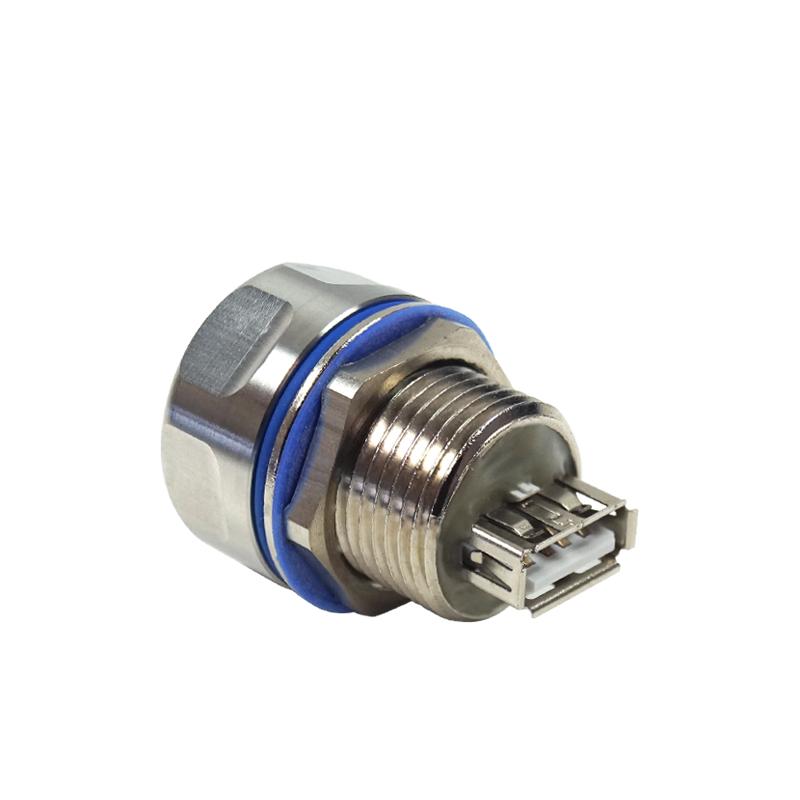

Technical drawing IP67 USB 2.0 type A socket STE-IP67-VM-USB-A-F-PANEL-UNV Technical drawing We offer our new high quality IP67 USB 2.0 type A female socket, with a USB 2.0 type A female connector on the back as well. Our IP67 through socket, with its screwable cap and rubber seals, is dust and waterproof and meets the IP67 protection class. In addition, the cap is attached to the socket with an internal locking wire and can therefore not be lost. A self-locking nut is also included in the scope of delivery and can be used with a housing thickness of up to 8 mm. The IP67 socket enables data transfer rates of up to 480 Mbit/s (60 MByte/s). It is ideally suited for heavy-duty use in the medical sector and for industrial use.

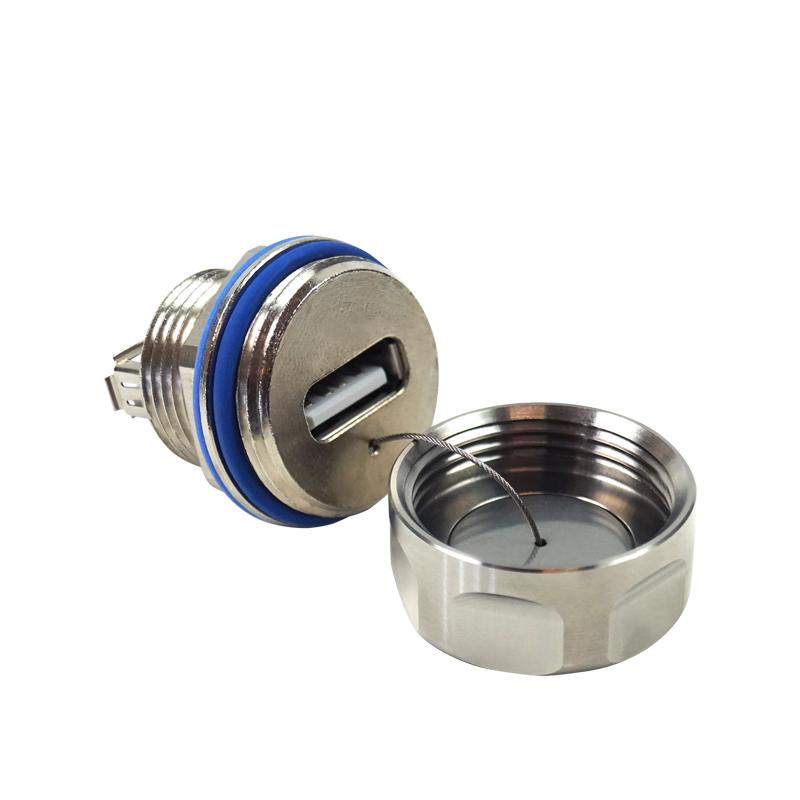

side 1: USB 2.0 type A, female; incl. screwable cap with safety wire rope

side 2: USB 2.0 type A, female

thread: for front M25, for hole M20 x 1.5 mm

L = 38.5 mm

socket material: brass, nickel-plated

housing material: solid metal

cap material: stainless steel V2A

incl. seals and self-locking nut

front panel thickness: up to 8 mm

weight: 76.5 g

You need a different version? No problem! Other IP67 solutions are available and can be assembled at any time. Feel free to discuss your desired changes with us, we will adapt the cable to your needs!
