IP67 socket USB 2.0 type A M20

KAB-IP67-V2-USB-A-F-USB-A-M-0500RK-SHORT This IP67 USB 2.0 solution is our successor to the following article: KAB-IP67-V2-USB-A-F-USB-A-M-1000RK - now with a "short body" version of the USB type A male connector on the side 2.

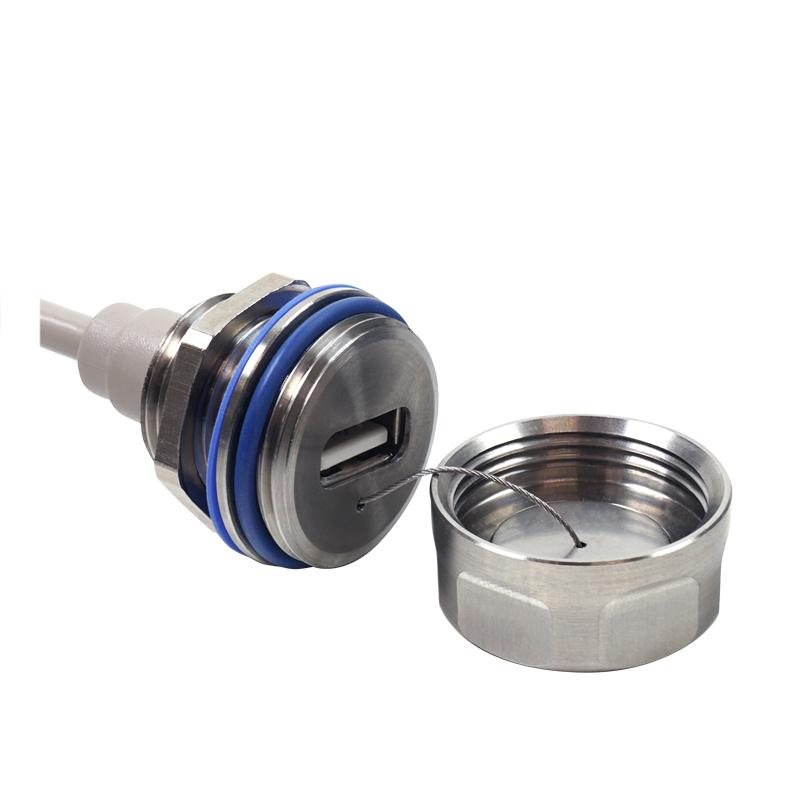

This IP67 cable assembly uses a USB type A female connector in a stainless steel version. The stainless steel material, type 1.4301, is ideally suited for heavy duty applications in the medical field and for industrial use, for example in the food industry. The IP67 socket, with its screwable cap and rubber seal, is dust and waterproof and meets the IP67 protection class. In addition, the cap is attached to the socket with an internal safety wire. A self-locking nut is included in the scope of delivery and provides the necessary support for the socket with a housing thickness of up to 8 mm. 500 mm is the standard length for this article other lengths are of course always possible on request. The minimum order quantity (MOQ) is 100 pieces.

side 1: IP67 USB type A, female with cap and retaining cable, M20 thread

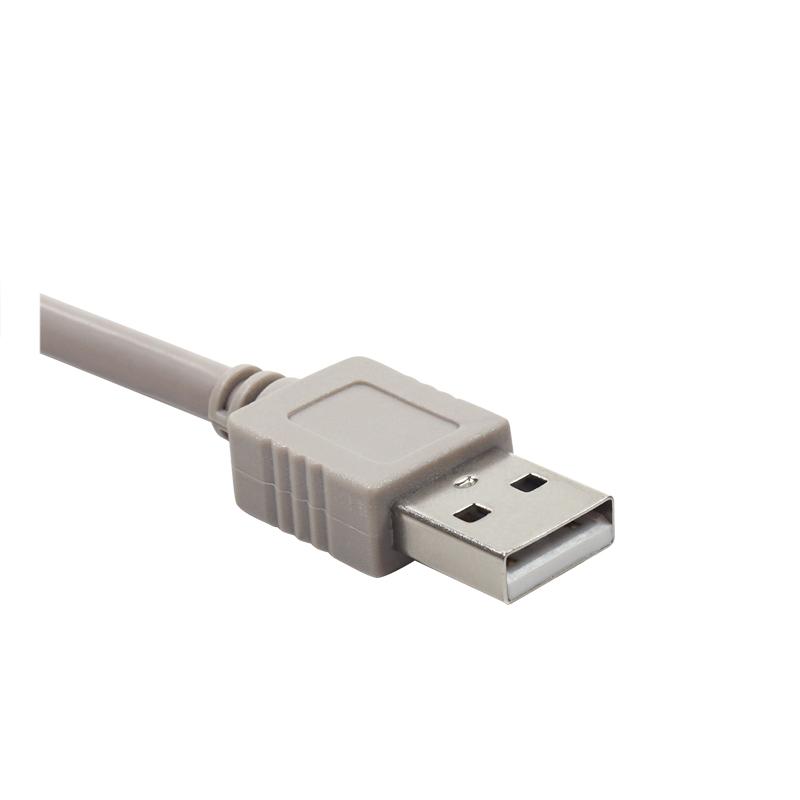

side 2: USB type A, male *short body*, l= 3 cm, w= 1,5 cm

cable: USB 2.0, grey

L = 500 mm UL iQ™2725

cap diameter: 27.3 mm

stainless steel type 1.4301

panel hole size: 21 mm

suitable for front panels up to 8 mm. MOQ = 100 pcs.

temperature range: -20 °C to 85 °C

weight : 90,8 g

Please feel free to have a look at further IP67 solutions or get additional information about the general IP protection classes . Further accessories can be found under the category IP67 accessories .
