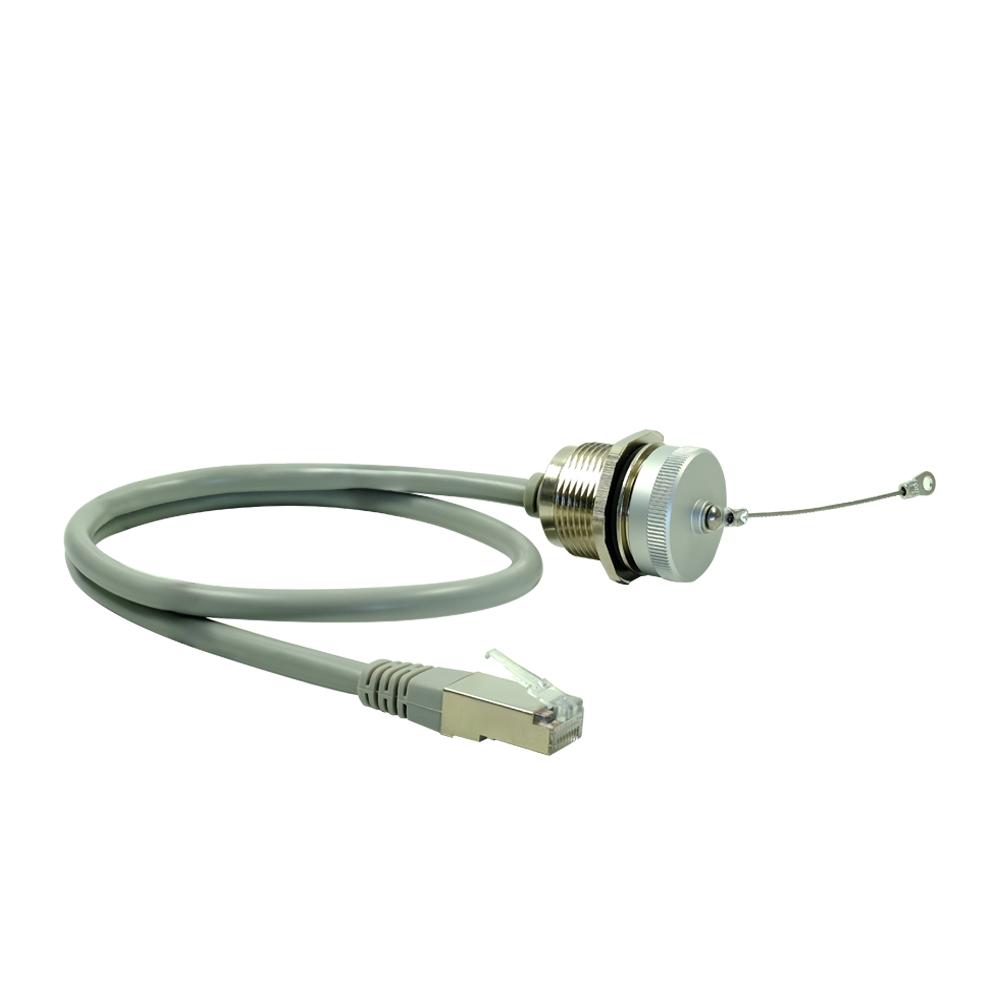

IP67 panel mount RJ45 socket KAB-IP67-VM-RJ45-F-RJ45-M-0500RK Robust IP67 Pass-Through Socket with RJ45 Network Connection – Ideal Solution for Demanding Environments Our IP67 pass-through socket with an RJ45 network connection has been specifically designed for installation on front and rear panels. This pass-through socket has been constructed to meet the high requirements of the IP67 standard, thus providing reliable protection against dust and water.

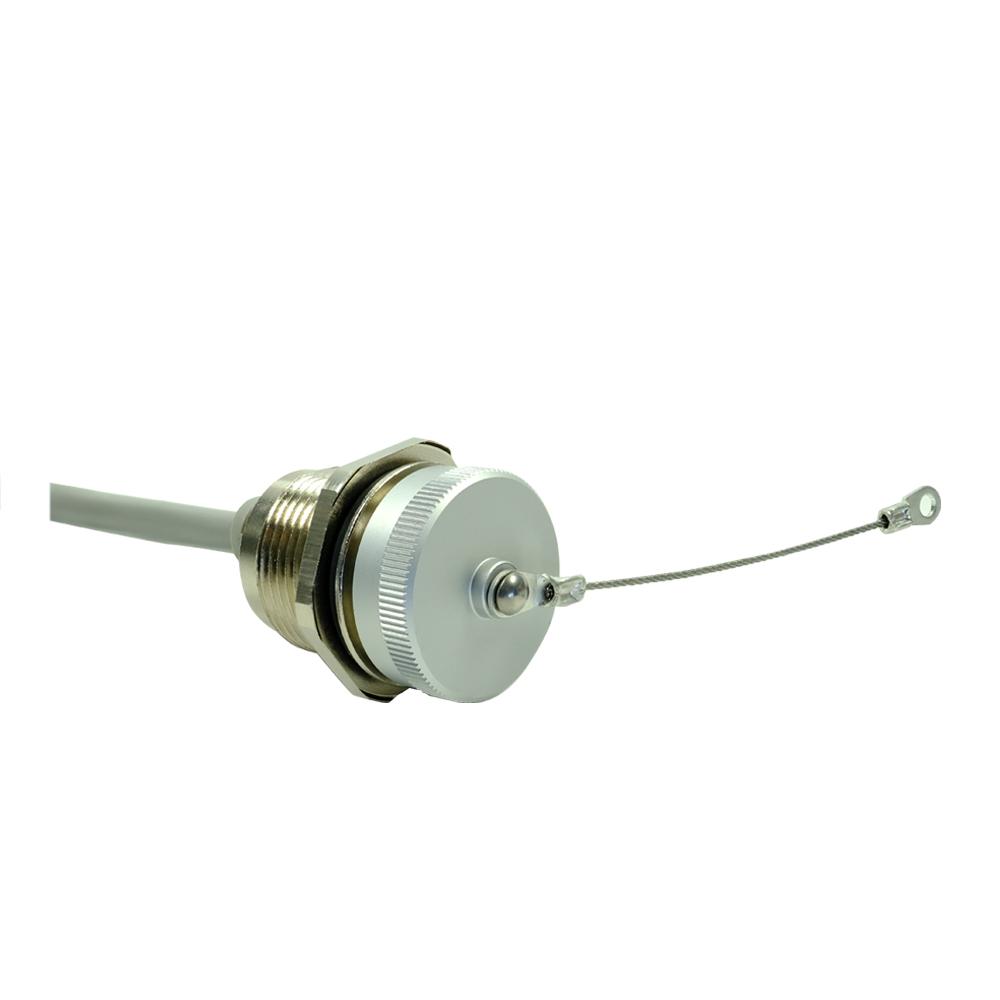

Side 1: IP67 panel mount RJ45 socket (full metal), female, including screw cap

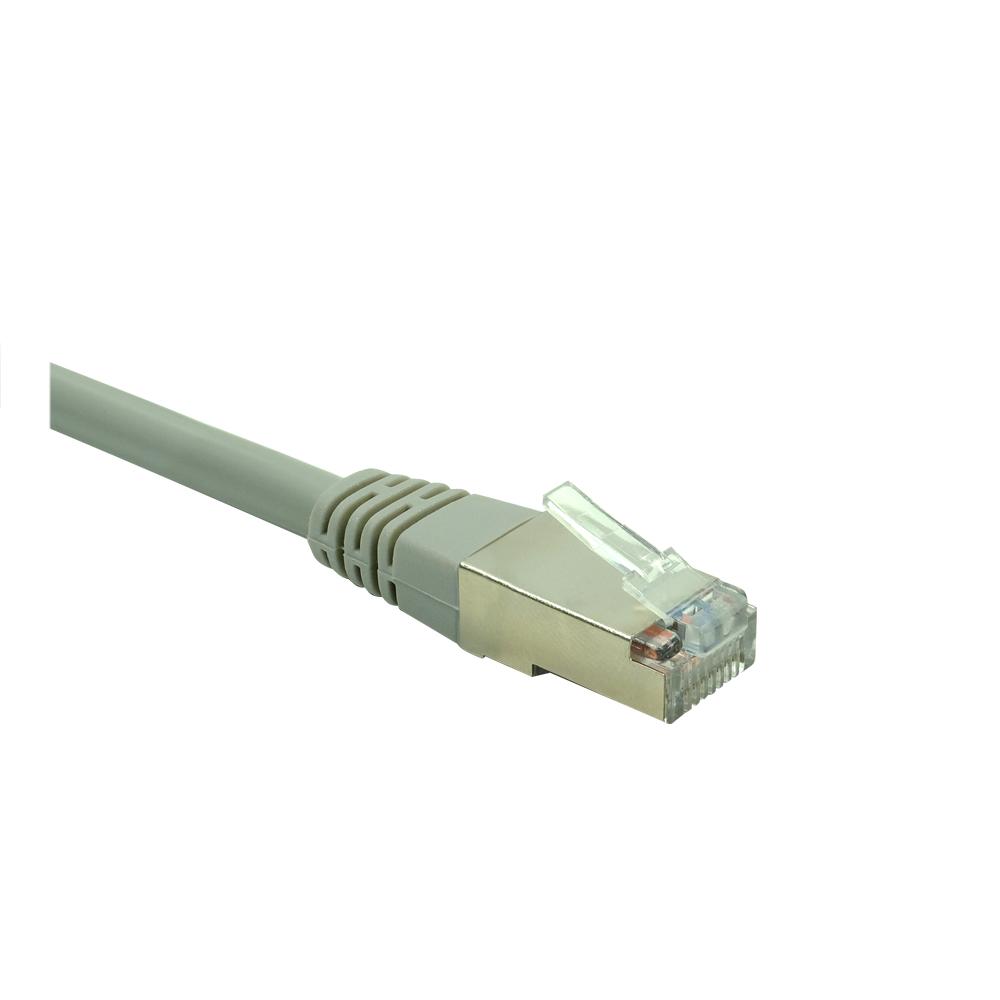

Side 2: 8-pole RJ45 plug connector, male

Thread: M25 x 1.5

Cable: Shielded, CAT5, length 500 mm

Temperature Range: -20 °C to 85 °C

High-quality cable gland made of nickel-plated brass Includes sealing ring for additional protection Protective cap with wire loop made of aluminium

Weight: 82.4 g

Optional Accessories Looking for a matching counterpart solution? We offer the cable KAB-IP67-VM-RJ45-MALE-RJ45-M-0500RK with a lock nut and cable gland, which is perfectly suited for this pass-through socket. We understand that every application has unique requirements. Therefore, we offer tailored IP67 solutions that align with your individual needs. Talk to our expert team to discuss your specific requirements. Feel free to explore our other IP67 solutions . We provide pre-configured options at any time and are ready to discuss your special requirements. Additionally, familiarise yourself with the general IP protection classes to find the best solution for your applications.
