I-PEX FFC display cable with shielding

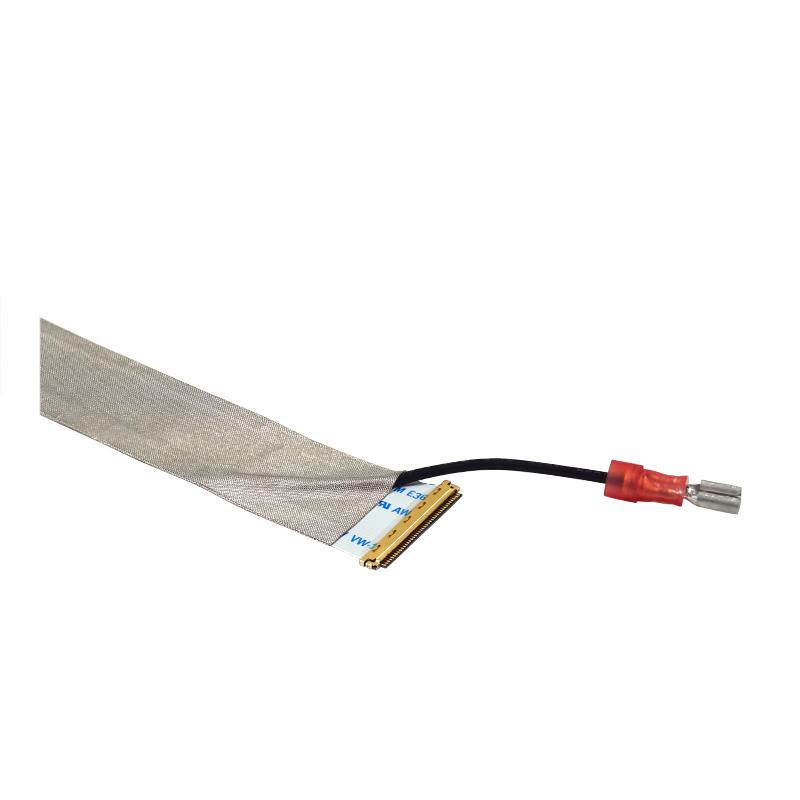

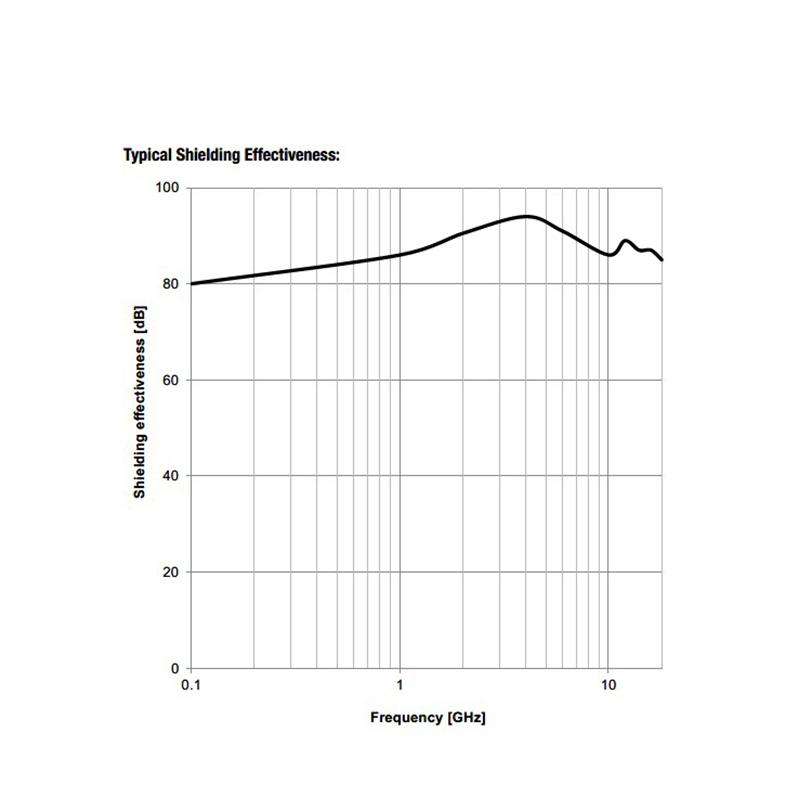

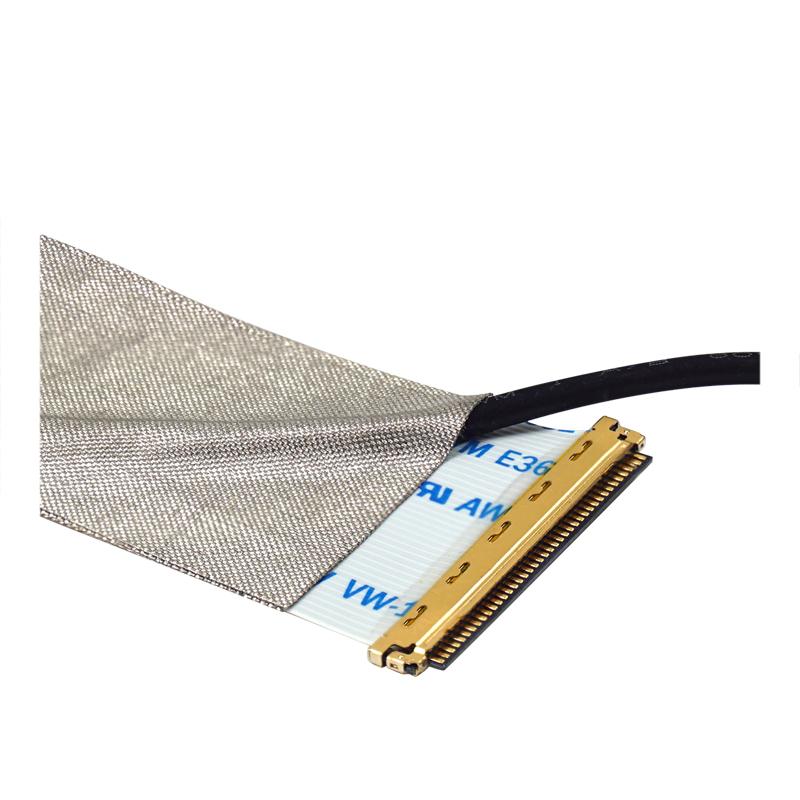

KAB-I-PEX-20453-040T-0450-FFC-A-SHIELD-4.8 This specially manufactured I-PEX FFC display cable is a shielded version of our article: KAB-I-PEX-20453-040T-0100-FFC-A . The display cable has been shielded with conductive tape and a special shielding with flat receptacles has been applied. We can also produce a version with ring terminals for you. The complete shielding provides increased EMC compatibility, minimisation of the ingress and egress of high-frequency signals and 90 dB attenuation at approx. 10 GHz.

side 1: I-PEX 20453-040 or compatible

side 2: FFC cable type A, 40 pins, shielded on both sides

Faston terminals: 4.8 x 0.8 mm, L = 35 mm over cable ends

pitch: 0.50 mm

L = 450 mm

temperature range: -30 °C to +105 °C

RoHS compliant and lead free UL 20706 (105 °C, 60 V) Please visit our I-PEX category. Here you will find more cable assemblies with I-PEX connectors.

Matching displays : NL192108AC21-01, AM-19201200B1TZQW-T51-A, AM-19201200B1TZQW-00-B, AM-19201080D1TZQW-A1H, AM-19201200G2-T50, LP156UD3, G150XAB03, LP156WFD, G170HAN01.1, B133HAK01.0, TM101JDHG38, PT1280101E-ILMFW-EMC04, MTD1010CZK, MCT101E0W1280800LMLIPS, CH101CLHL-001, LMT101DNLFDW, HY-070MRLA0, NV184QUM-N21, G101EAN02.2, G170HAN01.0, AM-1280800WJTZQW, EV156FHM-N12, G156HAB02.4, P0840VGF1MB00, P084VGF1MA00, P1040VGF1MB00, P1010WXF1MA01, P0840VGF1MA00, P1010WXF1MB10

Matching pin headers : MSAK24025P40G

Matching backlight cable : KAB-SHR-08-0500LI
