I-PEX CABLINE-V Connector for Micro-Coax Cables

STE-I-PEX-20347-340E-12 Product catalogue: I-PEX CABLINE® V Technical drawing

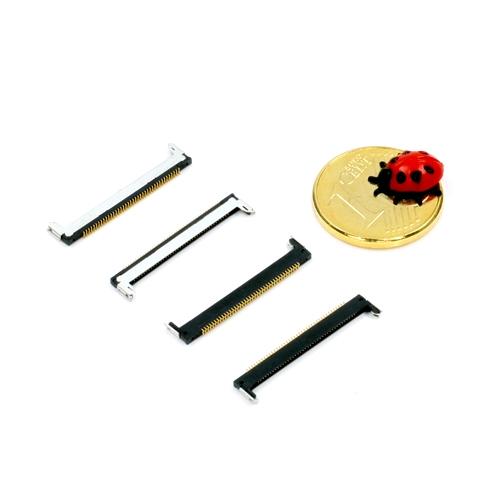

I-PEX-CABLINE-V an ultra thin connector series designed for Micro-Coax cables. Possible application areas are high speed LVDS operations especially for LCD display control. The thickness of the complete connector is only 1.00 mm. This I-PEX connector is designed for SMD/SMT PCB mounting. Generally this series is delivered in cable rolls of 2.000 pieces but segments of 10 pieces can also be delivered from stock if available. The following number of poles can be supplied on short notice: STE-I-PEX-20347-325E-12 - 25 pin STE-I-PEX-20347-330E-12 - 30 pin STE-I-PEX-20347-340E-12 - 40 pin Matching cables: 30 pin I-PEX-Kabel: KAB-I-PEX-20345-030T-0100-1:1-FLAT 40 pin I-PEX-Kabel: KAB-I-PEX-20345-040T-0100-1:1-FLAT
