HSDS Cable Series by OKI for LVDS Transmission

LTG-OKI-HSDS-K-AWG28-6P-K-M Product catalogue : colour scheme | technical data

The “HSDS cable series” from OKI Electric Cable is suitable for differential transmission as a digital interface cable and can be used for a wide range of applications.

The digital interfaces used in many industrial devices are based on conventional interface standards but they are often adapted to the specifications of the respective devices. This can result in long delivery times. Furthermore the cables must be individually designed and manufactured. To solve this problem, OKI Electric Cable has analysed the specification requirements received from customers, identified and standardised the most versatile cable structures. The result: OKI's HSDS Series!

Transmission speed of up to 5 Gbps! Most LVDS lines can reach a maximum transmission speed of 1.923 Gbps. More and more devices require a faster digital interface to ensure higher performance and functionality. The HSDS cable series is designed for optimized differential transmission. You can achieve more stable transmission quality with the new LVDS cable and it also supports a transmission speed of up to 5 Gbps. The interface cable is double shielded for improved noise performance and is ideal for cabling of industrial equipment that may be affected by interference.

From the HSDS OKI cable series we can offer you further cable variants. 2-, 4-, 6- and 8-twisted pair variations of the high-speed cable are available from us. You can order the eight paired OKI cable with this order number: LTG-OKI-HSDS-K-AWG28-8P-K-M .

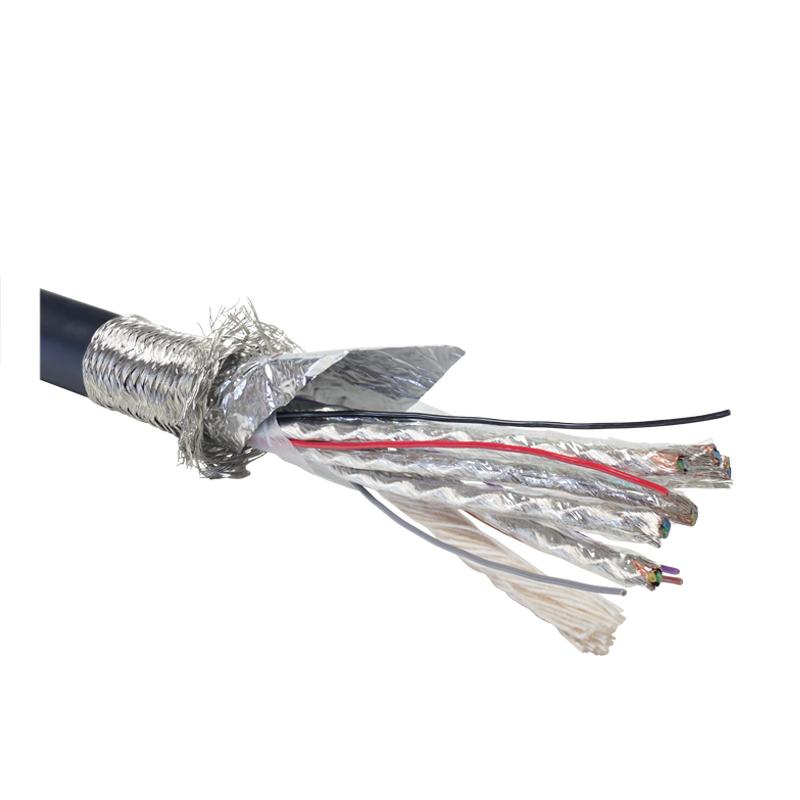

cable: HSDS K 28AWGX6P K-M

copper wire strands, 6x2 twisted pair wire, 5 core wire, AWG28, up to 50 °C, 30 V

outer diameter stranded wire, twisted pair: 1.1 mm

shielding twisted pair: tinned annealed copper wire

outer diameter stranded wire, core wire: 0.7 mm

outer diameter of cable: 9,5 mm

spiral shield: tinned annealed copper wire braid

insulation material: oil and heat resistant PVC

colour: black

flexible, up to 10 million bending cycles (R = 50 mm) drag chain capable oil-resistant RoHS compliant UL 20276 Electrical requirements:

transmission rate: 5 Gbps

characteristic impedance: Standard 100 Ω

conductor resistance Ω/km: ≦ 206 (20℃) insulation resistance MΩ/km: ≧ 1000 (20℃)

withstand voltage V-1-min: 500 VAC
