HIROSE FX16 series

Product catalogue: FX16 series Technical Drawing: FFC cable

HIROSE's FX16 series connectors provide high-performance board-to-wire connections that reliably support high-speed data transmission. Signal transmissions of up to 6 Gbps are possible. In addition, the FX16 series offers exceptional impedance matching, even with high rise times of Tr = 50 ps (10 - 90%).

The FX16 connector series is very versatile. There is a common connector version, which is suitable for shielded FFC cables as well as for single wire and micro coaxial cable assemblies. Numerous pole numbers are available: 21, 30, 31, 41, 51. Different plug versions are possible, for example a right-angled, vertical version for batch cable harnesses or for direct plug-in styles. Several positions and sizes are available, please refer to the product catalogue.

FX16 connectors are compatible with V-by-One® HS panel interfaces. The data transmission performance at 3.75 Gbps is excellent. This is also shown by the evaluation of the eye diagram. The eye pattern at these signal speeds is wide open for both micro-coaxial and FFC connections (see product catalogue). With the patented Fliplock construction, for FFC applications, the foil cable is fixed with a flap. This makes FFC assembly much easier and eliminates the need for expensive soldering. The vertical connector style also simplifies the assembly process. In addition, this fliplock version gives a lower profile, due to the limitation of the connection height – only 8 mm. Perhaps you are looking for a ready-made foil cable assembly?

FX16 series, pitch: 0.5 mm, black, beige

shielded FFC, single wire, micro-coaxial cable

connector dimensions: please refer to the attached PDF

contact coating: copper alloy, gold plated

pole numbers: 21, 30, 31, 41, 51

connector orientation: straight, right-angled

mating cycles: 50

RoHS compliant

temperature range: -55 °C to 85 °C

MOQ = 250 pcs.

Key Features

• designed for high speed data transmission
• compatible with V-by-OneR® HS interface
• patented Flip-Lock locking system simplifies FFC applications
• vertical cable connector available
• numerous cable connector and pole number variants for different cable types are available
• All materials and substances used to manufacture the connector fully comply with the RoHS standard.
• Electrical characteristics:
• These connector types are available:
• FX16F-21P-HC, FX16F-31P-HC, FX16M2-41P-HC, FX16M2-51P-HC

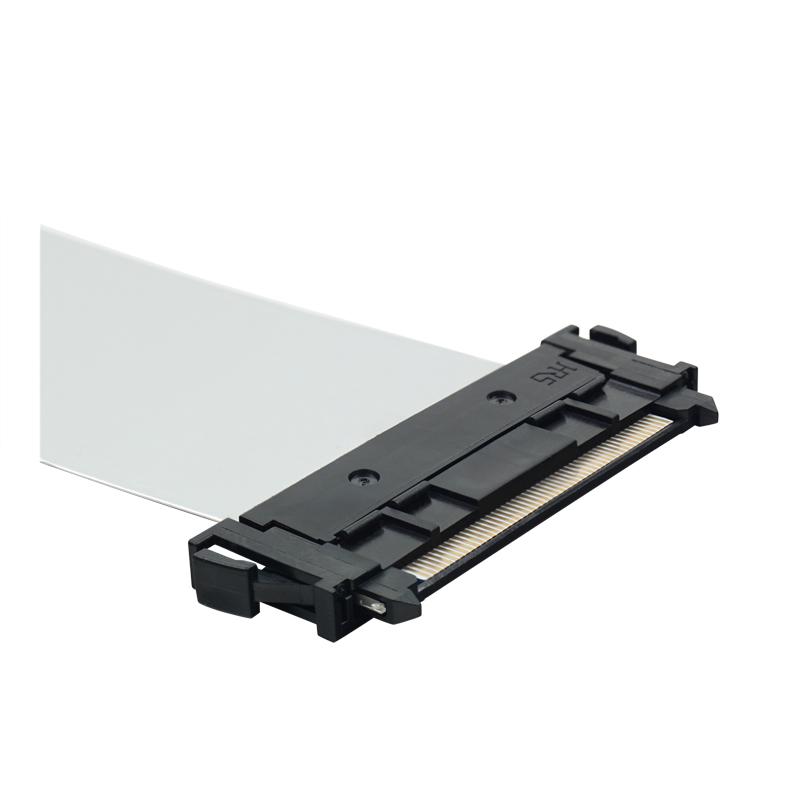

• *The picture shows a mounting example. A 51 pole FFC cable is supplied.

Product Notes

nominal voltage: 60 V AC/DC, 0.5 A

insulation resistance: min. 500 MΩ, measured at 100 V DC

dielectric withstand voltage: 200 V AC for 1 minute

contact resistance: max. 80 mΩ, 1 mA

vibration resistance: no electrical discontinuity for more than 1μs, 2 hours in each of the three axes, at a frequency of 10-55 Hz, half amplitude 0.75 mm

shock resistance: no electrical discontinuity for more than 1μs, acceleration of 490 m/s2, 11 ms, half sine in 3 directions 3 times each for the three directions (axes)

moisture resistance: relative humidity: 85% or less
