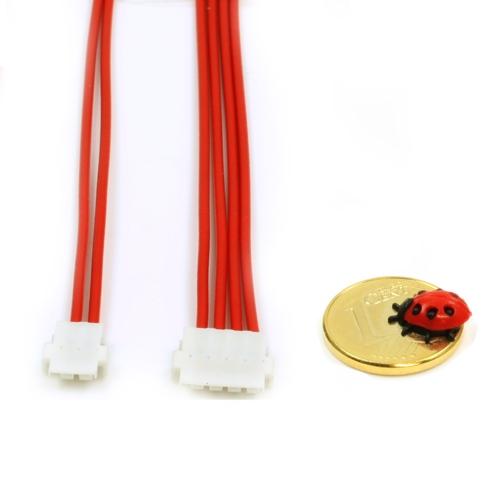

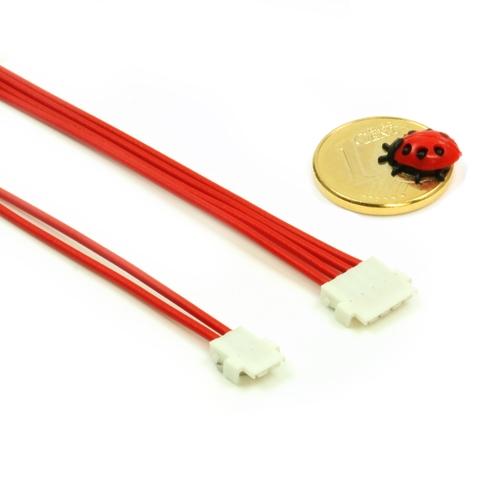

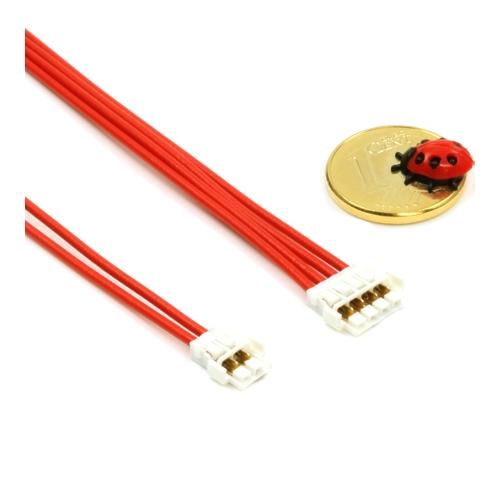

Product catalogue: Hirose DF59 series for assemplied cable KAB-DF59-02P-2C-0500LI

HIROSE DF59 series

Product catalogue: Hirose DF59 series for assemplied cable KAB-DF59-02P-2C-0500LI

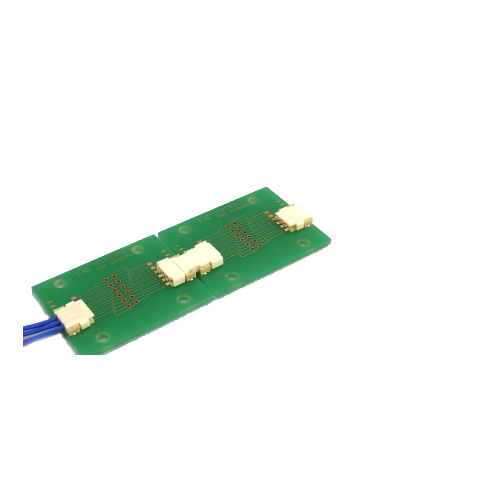

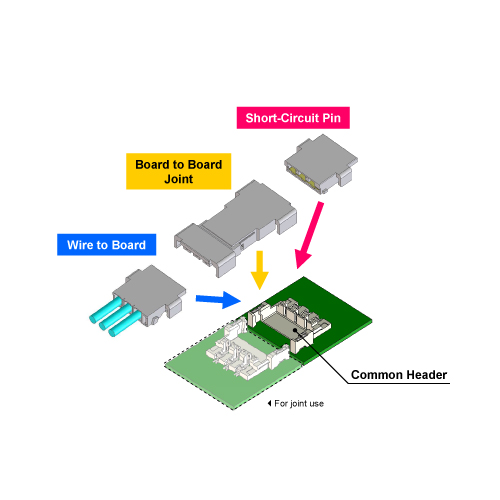

The connector series DF59 from HIROSE is among others applicable for LED and OLED lighting technology as well as for LED modules and touch panels. The circuits AWG22 (Ø 1.26 mm/UL1061) are 2 to 6-pin. Multifunctionally serviceable for wire to board, board to board and additionally for short pin applications. As to wire to board applications a catch mechanism commonly known as “swing lock” is operated. As to board to board applications a catch mechanism known as “friction lock” is operated. This allows a higher triaxial flexibility (X,Y and Z axis). The connector serves as terminating plug when operated as “short pin”. In this case only one type of female connector is necessary. Thus the number of operated components can be reduced. 2 mm grid dimension 2 – 4-pin AWG22, Ø 1.26 mm

UL1061

3-way connector (W to B) and short pin 3 A RoHS compliant

dimension: 500 (l) (in mm)

operating temperature: -20 °C to 105 °C

weight: 1.5 g

Article description: DF59-2P-2C, DF59-3P-2C, DF59-4P-2C

Matching crimp contact: DF59-22PCFA

Matching cable: KAB-DF59-02P-2C-0500LI, KAB-DF59-03P-2C-0500LI, KAB-DF59-04P-2C-0500LI
