Product Notes

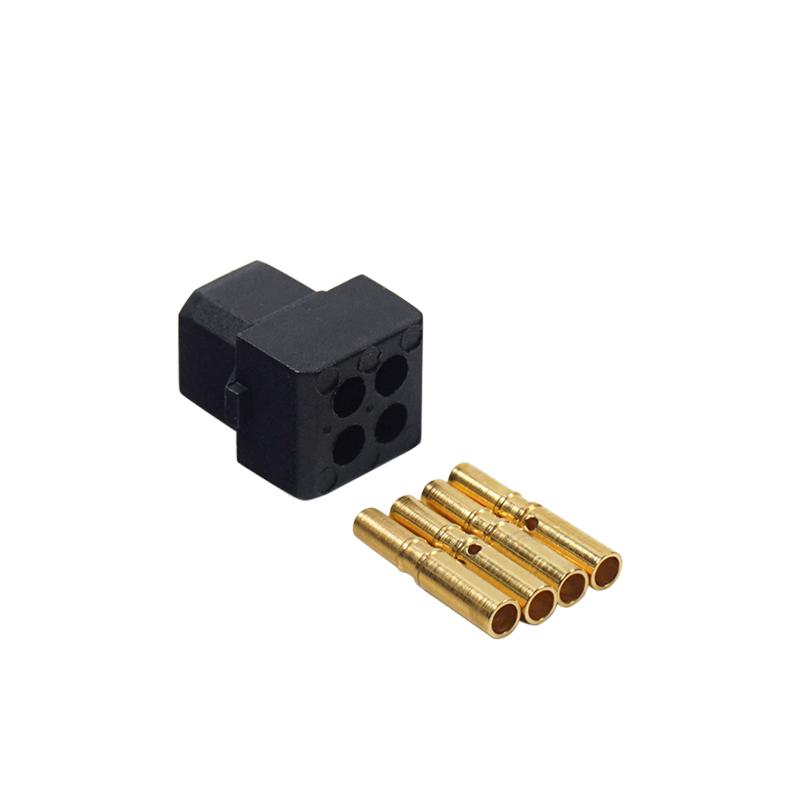

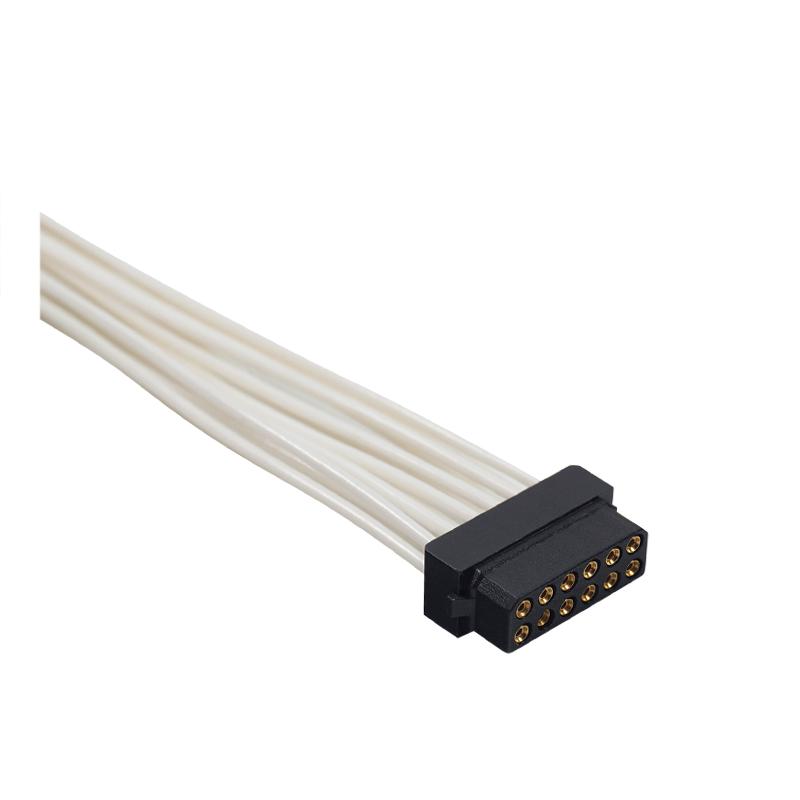

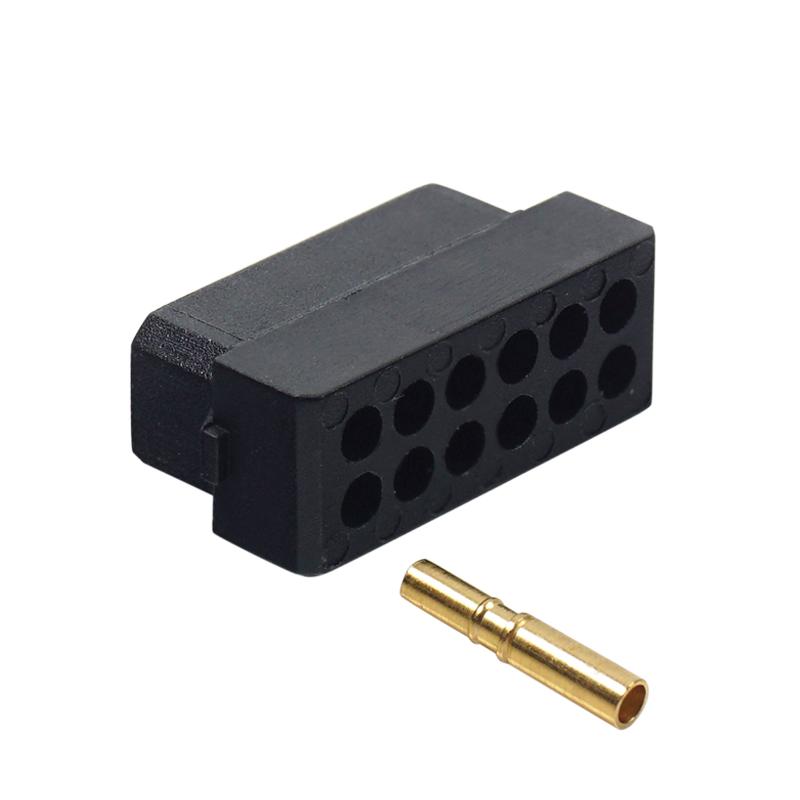

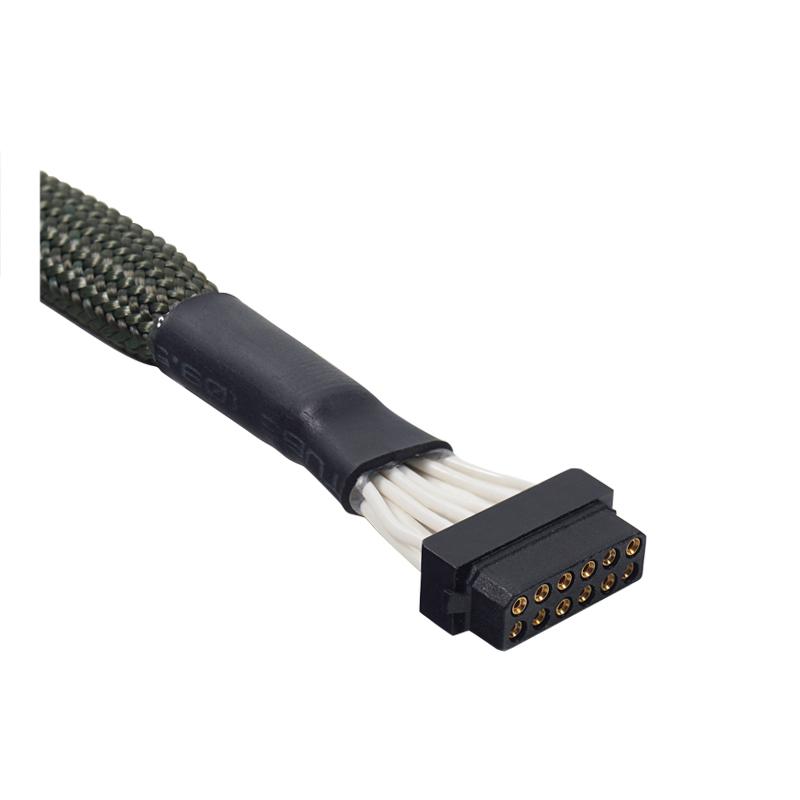

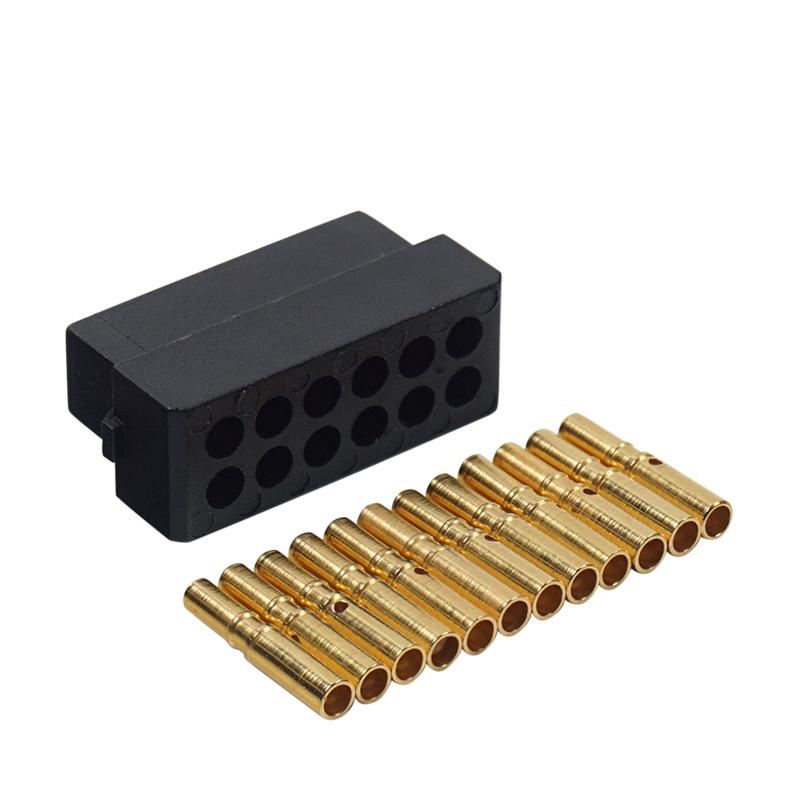

We can process the following highly reliable connector series for PCB and cable assembly solutions from Harwin : M80 Serie The Datamate M80 and M83 connector series offer an extremely flexible connection solution. The series is suitable for a variety of demanding applications. The connectors are available in one, two and three rows. 3 A per signal contact in 2 mm pitch

working voltage: 800 V AC

maximum voltage: 1,200 V AC

contact resistance: max. 25 mΩ

insulation resistance: min.100 MΩ

operating temperature: -55 °C to +125 °C

humidity classification: 56 days at 95%

vibration (with latches): 10-2,000 Hz, 0.75 mm, 98 m/s² (10 G), 6 hours in total

shock (with latches): 981 m/s² (100 G) for 6 ms

500 mating cycles Material:

beryllium-copper contact for improved temperature range: -55 °C to +125 °C

female contacts: high performance beryllium copper contact, gold finish - brass outer shell in gold or tin (over nickel) finish

Male contacts: copper alloy, gold or tin (over nickel) finish

housing: 30% glass-filled high temperature plastic, tested according to UL94V-0

screw connection: stainless steel

latches: beryllium copper, tin over nickel finish

Wire specification:

wire size: 22 to 32 AWG

recommended wire types: BS 3G 210 type A, MIL-W-16878/6 type ET

insulation diameter: max. 1.10 mm Ø for large and small bore contacts, max. 0.75 mm Ø for extra-small bore contacts

M300 Serie Harwin's M300 series expands the high reliability portfolio with a compact power solution that is ideal for a variety of test environments and conditions. Connectors are currently available in 3-contact single row, 6- and 10-contact double row. 10 A per contact in 3.00 mm pitch

working voltage: 600 V AC

maximum voltage: 1.800 V AC

contact resistance: max. 6 mΩ

insulation resistance: min. 100 MΩ

operating temperature: -65 °C to +175 °C

humidity classification: 56 days at 90%.

vibration (with latches): 10-500 Hz, 1.52 mm, 98 m/s² (10 G), 9 hours in total

Shock (with latches): 981 m/s² (100 G) for 6 ms

1.000 mating cycles Material:

beryllium copper contact for improved temperature range: -65°C to +175°C

female contacts: high performance beryllium-copper contact, brass outer shell, gold finish

male contacts: brass, gold finish

housing: 30% glass-filled high temperature nylon (polyamide), tested according to UL94V-0

screw connection: stainless steel

halogen-free, PFOS-free, SVHC-free and RoHS-compliant Cable specification:

wire size: 18 to 22 AWG

recommended wire types: M22759/11, BS 3G 210 type A, MIL-W-16878/6 type E

insulation diameter: max. 1.8 mm Ø for 18 und 20 AWG, max. 1.4 mm Ø for 22 AWG

G125 Serie Harwin’s Gecko (G125 series) connectors provide a low profile, dual row interconnect solution, ideally suited for stacking and cable mating in areas where PCB real estate is at a premium. Gecko supplies a pin spacing of 1.25 mm, up to 50 contacts per connector. This design means that G125 connectors save up to 45% space and up to 75% weight compared to other high performance connectors. 2 A per contact in 1.25 mm pitch

working voltage: 450 V AC

maximum voltage: 600 V AC

contact resistance: max. 25 mΩ

insulation resistance: min. 1 GΩ

operating temperature: -65 °C to +150 °C

humidity classification: 56 days at 93%.

vibration (with latches): 10-2.000 Hz, 1.5 mm, 98 m/s² (20 G), 2 hours in total

Shock (with latches): 981 m/s² (100 G) Z axis, 490 m/s² (50G) X & Y axis

Material:

beryllium copper contact for improved temperature range: -65°C to +150°C

female contacts: high performance beryllium-copper contact, gold finish

male contacts: copper alloy, gold finish

housing: 30% glass-filled high temperature plastic, tested according to UL94V-0

screw connection: stainless steel

Snap locks: Copper-tin-nickel alloy

Cable: PTFE Device wire

Sealing compound: Stycast 2651MM with catalyst 9

halogen-free, PFOS-free, SVHC-free and RoHS-compliant Cable specification:

wire size: 26 to 32 AWG

recommended wire types: BS 3G 210 type A, MIL-W-16878/6 type ET or NEMA HP3 type ET

insulation diameter: max. 0.80 mm Ø

Matching Crimpcontacts:  G125-0010005, G125-0500005, G125-1010005
