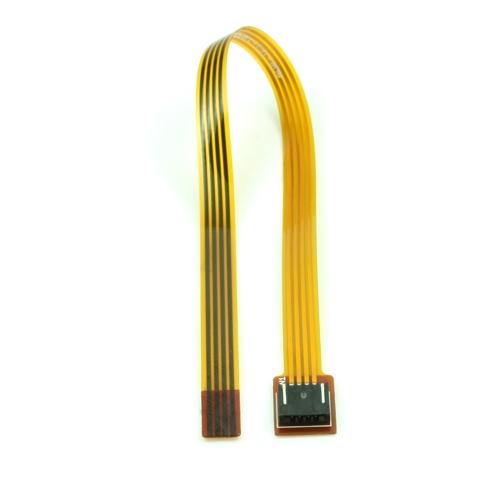

Flexible Printed Circuit Boards One example for flexible printed circuit boards for FFC extension with connector (touch extension).

side 1: insertion tongue FFC, grid 1.00 mm, 4 pin

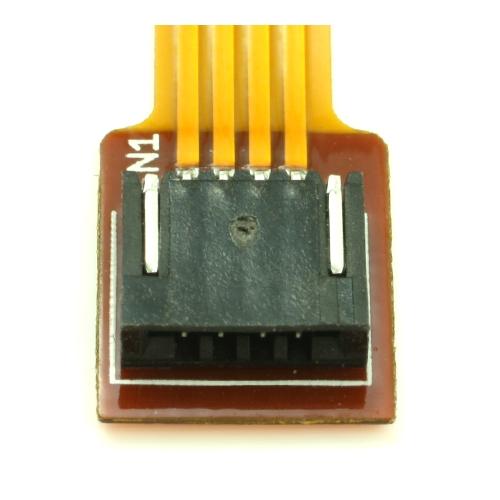

side 2: FFC connector, grid 1.00 mm, 4 pin

contact down,  LIF

L x W: 155 x 8 mm

Orderable with item no.: ADA-TOUCH-4P-100-FLEX-0150-1:4 1:4 connection ADA-TOUCH-4P-100-FLEX-0150-1:1 1:1 connection
