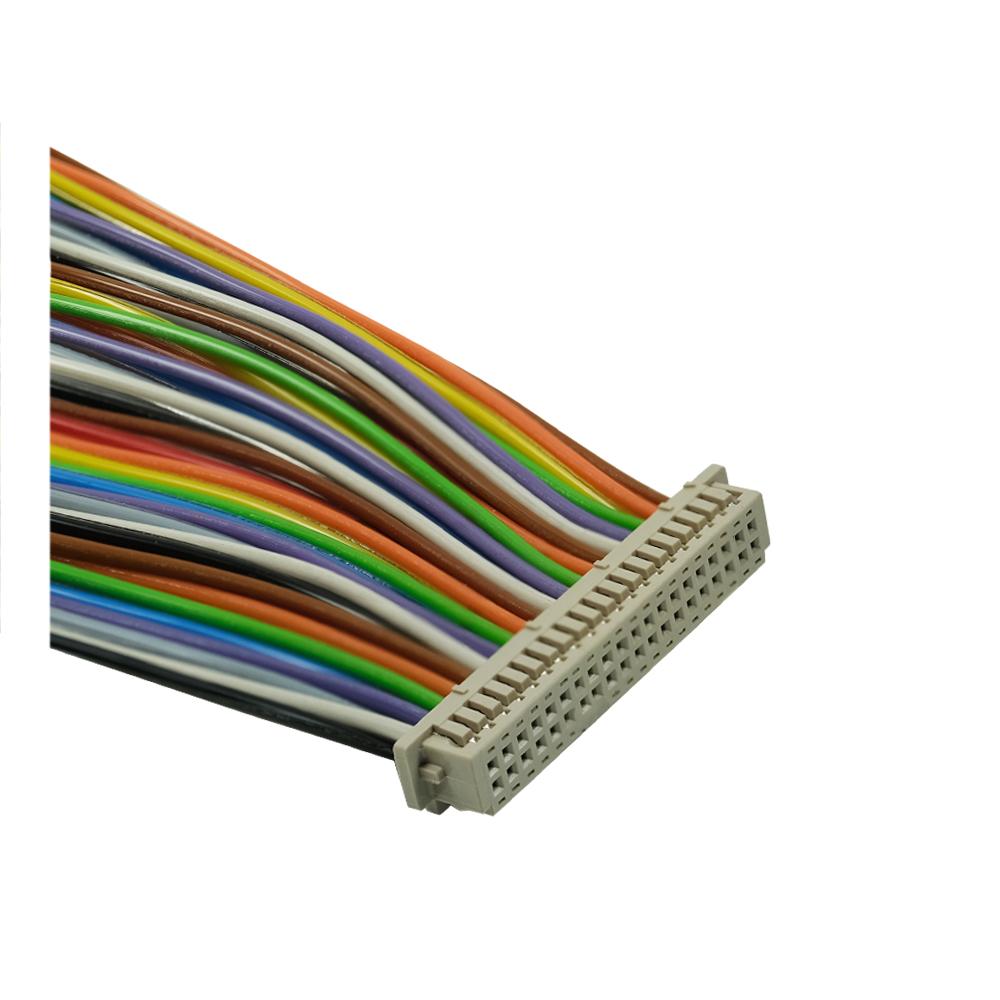

Flat ribbon/round cable with HIROSE DF13 connector KAB-DF13-NNDS-LLLLFK The connectors of the HIROSE DF13 series are very popular and often used on the new embedded boards as LVDS/TTL interface. Therefore we do have all popular types on stock. The part number is composed as follows:

KAB-DF13-NNDS-LLLLFK

KAB = Cable assembling DF13 = Connector series NNDS = Pin number, e.g. 40DS = 2 x 20 pin LLLL = Length, e.g. 0500 = 500 mm, 0750 = 750 mm FK/RK = Flat cable/Round cable These cables are unprocessed on one side and may be assembled by the user. We also offer completely assembled cables according to our customers’ requirements.

Product Notes

Wire: Color coded ribbon cable, AWG28, UL2651

Contacts: DF13-2630SCF (AWG26-30), DF13-2630SCFA (gold plated)

Popular versions:

KAB-DF13-10DS-0500FK

fits with PCB header: DF13-10DP-1.25V

KAB-DF13-12DS-0500FK

fits with PCB header: DF13-12DP-1.25V

KAB-DF13-20DS-0500FK

fits with PCB Header: DF13-20DP-1.25V

fits with controller board: PCM-3353, WSB-945, EMB-852

KAB-DF13-30DS-0500FK

fits fit with PCB Header: DF13-30DP-1.25V

fits with controller board: PCM-8120

KAB-DF13-40DS-0500FK

fits with PCB Header: DF13-40DP-1.25V

fits with controller board: PCA-6751, PCM-3346, D2703, LS-372, LVDS-05, VL001-P, SH7780, PCM-5894

KAB-DF13-40DS-31POL-0500FK  – Ribbon cable, previous order no.:  KAB-DF13-40DS-0500FK KAB-DF13-40DS-40POL-0500RK – Round cable

fits with PCB Header: DF13-40DP-1.25V, A1252WV-SF2X20PD01

fits with controller board: PCA-6751, PCM-3346, D2703, LS-372, LVDS-05, VL001-P, SH7780, PCM-5894, Advantech MIO-5354
