Technical drawing FFC Cable with Side-Catcher | Hirose and Kyocera FFC0.50A40-0292L-4-4-08-08SC-FH28 Technical drawing This FFC cable type is particularly suitable for the connector series of the manufacturer Hirose and Kyocera due to its punching out, the so-called “side catcher”.

number of wires: 40

pitch: 0.50 mm (+/- 0.05 mm)

cross sections: 0.5.x0.10 mm (+/-0.02 mm)

contact length: 4 mm (+/- 0.50)

reinforcement length: 8 mm (+/- 1.50)

contact strength in mating area: 0.3 mm (+/- 0.05 mm)

insulation resistance: 100 MΩ minimum at DC500 V/min

total length: 300 mm

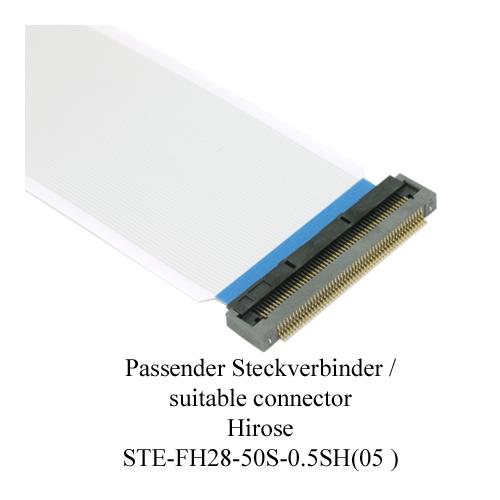

UL 2896  (80°C, 30 V), AC, VW-1 The following FFC variants are also available for you: FFC0.50A40-0142L-4-4-08-08-SC-FH28-AU | Total length: 150 mm with gold contacts and side-catcher FFC0.50A40-0442L-4-4-08-08SC-FH28 | Total length: 450 mm with side-catcher FFC cables fit to conector series: Hirose series

FH40: FH40-40S-0.5SV

FH28: FH28-40S-0.5SH (**)

Kyocera series

AVX 6251: 04 6251 040 010 846+

AVX 6288: 04 6288 040 000 846+

Fits for displays : TX26D208VM0AAA, P0700WSF2MB00
