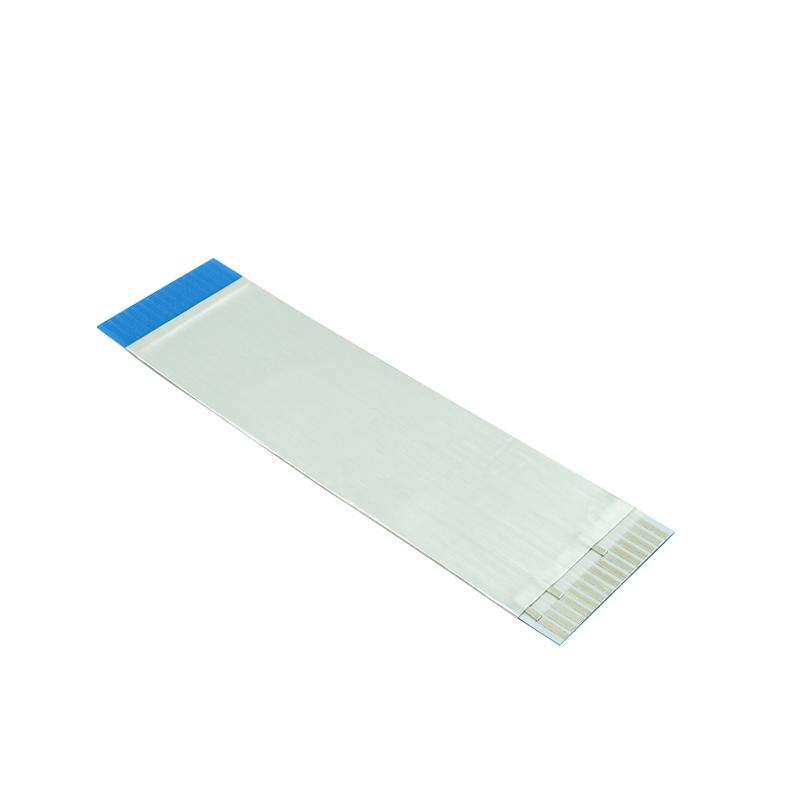

Back to overview New FFC Cable for Raspberry Pi Cameras & Displays | Type D Discover our high-quality FFC cable, specifically designed for connecting Raspberry video cameras and displays (including touch) to Raspberry Pi 2 B boards and mini PCs. With an overall length of 50 mm and an innovative opposite stripped design, this 15-pin cable offers reliable performance and flexibility for your projects. Our foil cable is compatible with Raspberry Pi models 3, 2, 1, B+, and A+ .

Type: FFC, opposite stripped, 15-pin

Pitch: 1.00 mm

Conductor Thickness: 0.05 mm

Conductor Width: 0.65 mm

FFC Thickness at Connector Area: 0.3 mm

UL 2896 (80°C, 30V) Available Lengths: FFC1.00D15-0042L-4-4-08-08 – 50 mm FFC1.00D15-0402L-4-4-08-08 – 410 mm FFC1.00D15-1592L-4-4-08-08 – 1600 mm FFC1.00D15-2092L-4-4-08-08 – 2100 mm Additionally, we offer shielded FFC cables for optimal signal quality. Shielded Variants: FFC1.00D15-0055L-3-3-06-06-SHIELD-3 – 61 mm FFC1.00D15-0083L-3-3-06-06-SHIELD-3 – 89 mm FFC1.00D15-0094L-3-3-05-05-SHIELD-5 – 100 mm FFC1.00D15-0147L-3-3-06-06-SHIELD-3 – 153 mm FFC1.00D15-0402L-4-4-08-08-SHIELD-4 – 410 mm FFC1.00D15-0994L-3-3-05-05-SHIELD-5 – 1000 mm Compatible Applications:

Raspberry Pi HD Video Cameras: RASPBERRY PI CAM, RASPBERRY PI CAN, RPI WWCAM with 15-pin MPI CSI-2 connector

Raspberry Displays: RASP C-BERRY, RASP C-BERRY 28, RASP C-BERRY TD with 15-pin serial display interface connector

Raspberry Pi Camera Module 3: Standard, NoIR, Wide, NoIR Wide

Our FFC cables are custom manufactured to meet your specific requirements, ensuring optimal fit for your applications. Visit our FFC configurator  for tailored solutions and take your projects to the next level! The minimum order quantity is 10 units. For customised FF cables, the minimum order quantity is 250 units.
