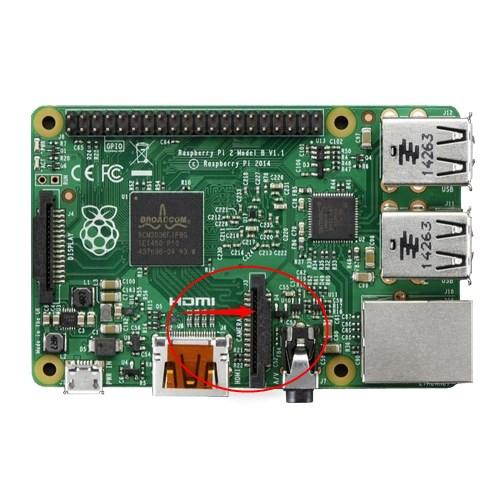

Technical drawing FFC Cable for Raspberry Pi Cameras & Displays | Type A Technical drawing The FFC cable enables the connection of a Raspberry video camera or various Raspberry displays (including touch displays) to a Raspberry Pi 2 B board/Mini PC and is compatible with Raspberry Pi models 3, 2, 1, B+, and A+ . Technical Data: FFC, Type A, stripped on both sides, 15-pin

Pitch: 1.00 mm

Conductor thickness: 0.05 mm

Conductor width: 0.65 mm

Overall thickness at the connector: 0.3 mm

Length: 200 mm

UL 2896 (80 °C, 30 V), AC, VW-1 The FFC cable is available in various lengths from stock: FFC1.00A15-0037L-4-4-10-10 FFC1.00A15-0092L-4-4-08-08 FFC1.00A15-0192L-4-4-07-07 FFC1.00A15-0340L-5-5-10-10 Compatible Applications:

Raspberry Pi HD video cameras: RASPBERRY PI CAM, RASPBERRY PI CAN, RPI WWCAM with a 15-pin MPI CSI-2 connector

Raspberry displays: RASP C-BERRY, RASP C-BERRY 28, RASP C-BERRY TD with a 15-pin serial display interface connector

The FFCs are manufactured to your specifications, ensuring a perfect fit for your application. Here you can access our FFC configurator . The minimum order quantity is 10 units. For customised FF cables, the minimum order quantity is 250 units.
