Technical drawing DC cable with CviLux connector for K3832Q mITX board KAB-MAIN-POWER-ATX12VO Technical drawing Explore our premium cables and connectors designed for the new INTEL ATX12VO power supply standard. With ATX12VO, the motherboard receives exclusively 12 volts, generating 3.3 V and 5 V internally. Introducing our 10-pin Main Power Connector, replacing the traditional 24-pin ATX plug. Our connectors align perfectly with ATX12VO standards, ensuring efficient power supply, especially at partial load. Unlike conventional connectors, our 10-pin (2x5-pin) connector resembles Molex Mini-Fit series but features a unique coding, no longer compatible with Molex Mini-Fit Standard. Manufactured by CVILUX, a renowned brand, our connectors boast top-notch quality. The new type used is from CVILUX:

Motherboard Connector: CviLux CP0131013S-HC-NH-X22

Matching Cable Socket: CviLux CP-01110031-E-X22

Our cables come with HIGH CURRENT Crimp contacts, certified up to AWG18 (approx. 0.89 mm²) and 10A for secure and efficient power transmission. We offer not only standard solutions but also custom cable assemblies tailored to your unique requirements. Learn more about our high-quality products; contact us for tailored cable solutions perfect for your applications. With our expertise, we're ready to support your project implementations.

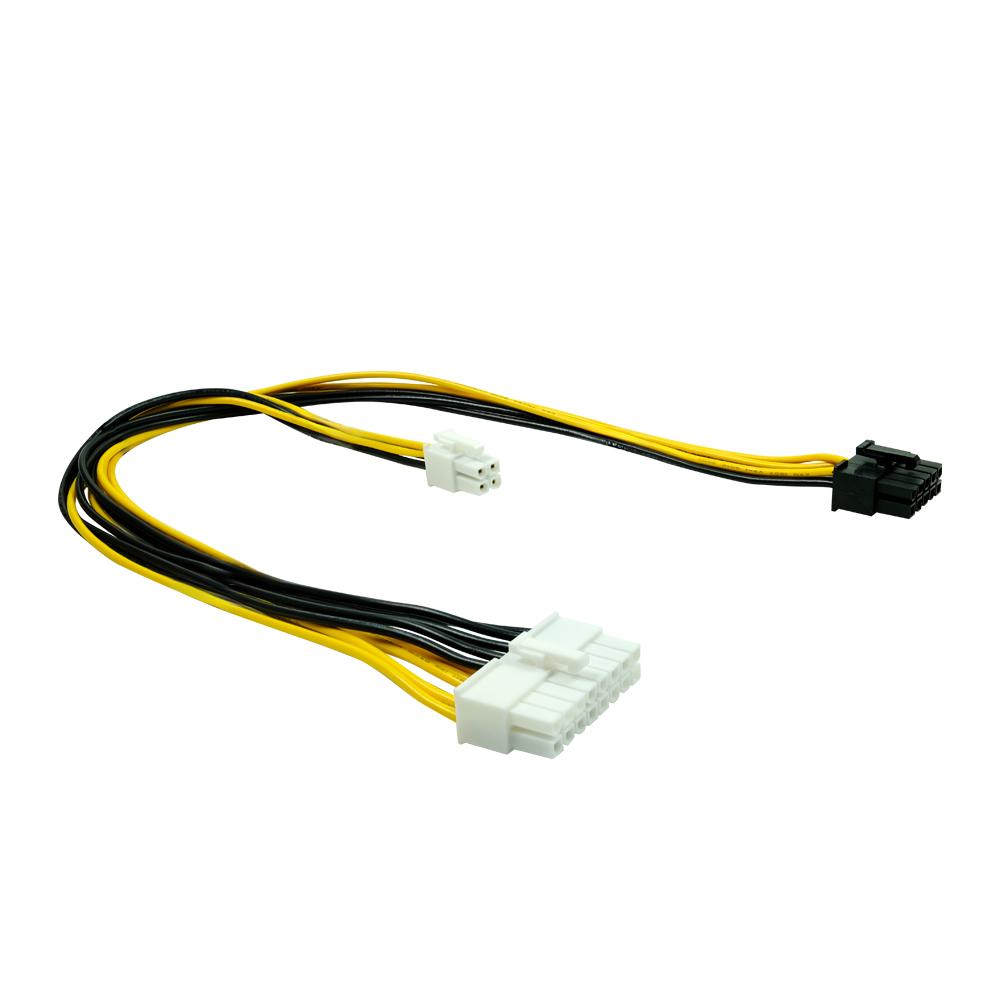

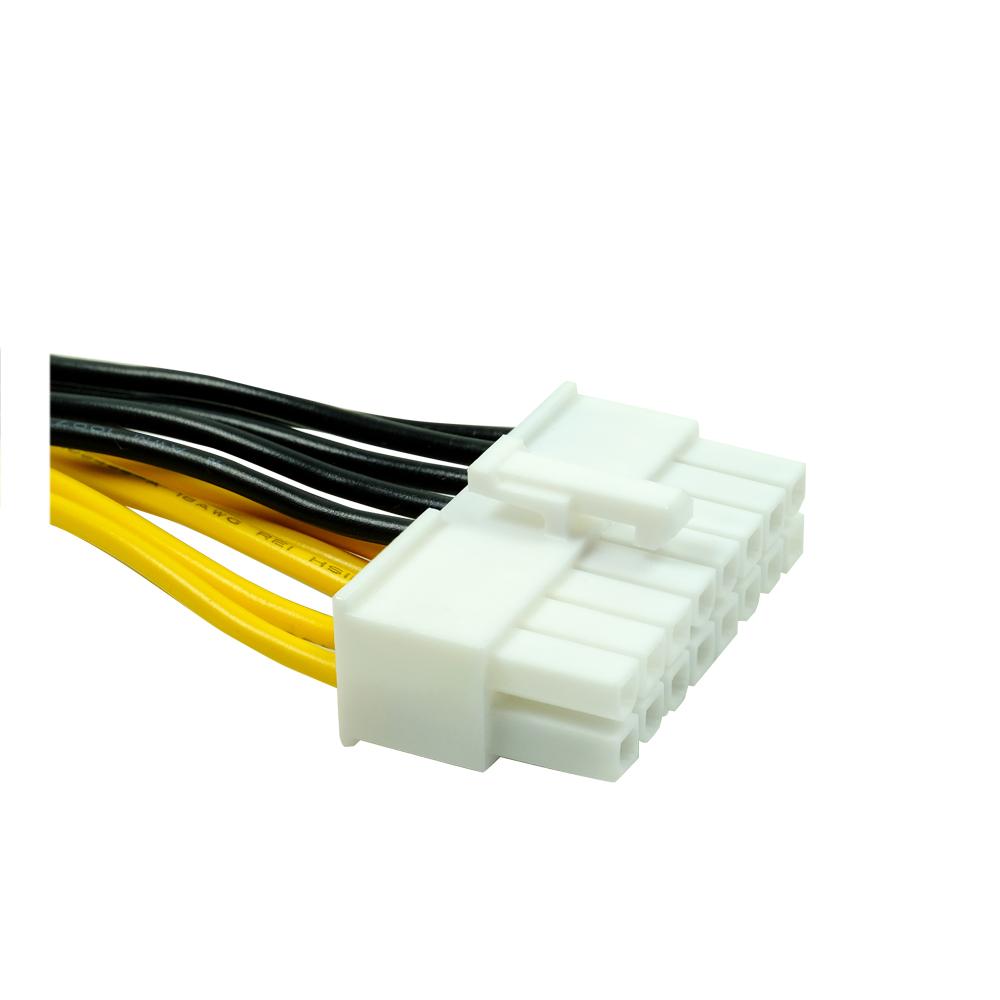

Side 1: 39-01-2165

Side 2: CVILUX (equivalent to CP-01110031-E-X22), L = 400 mm

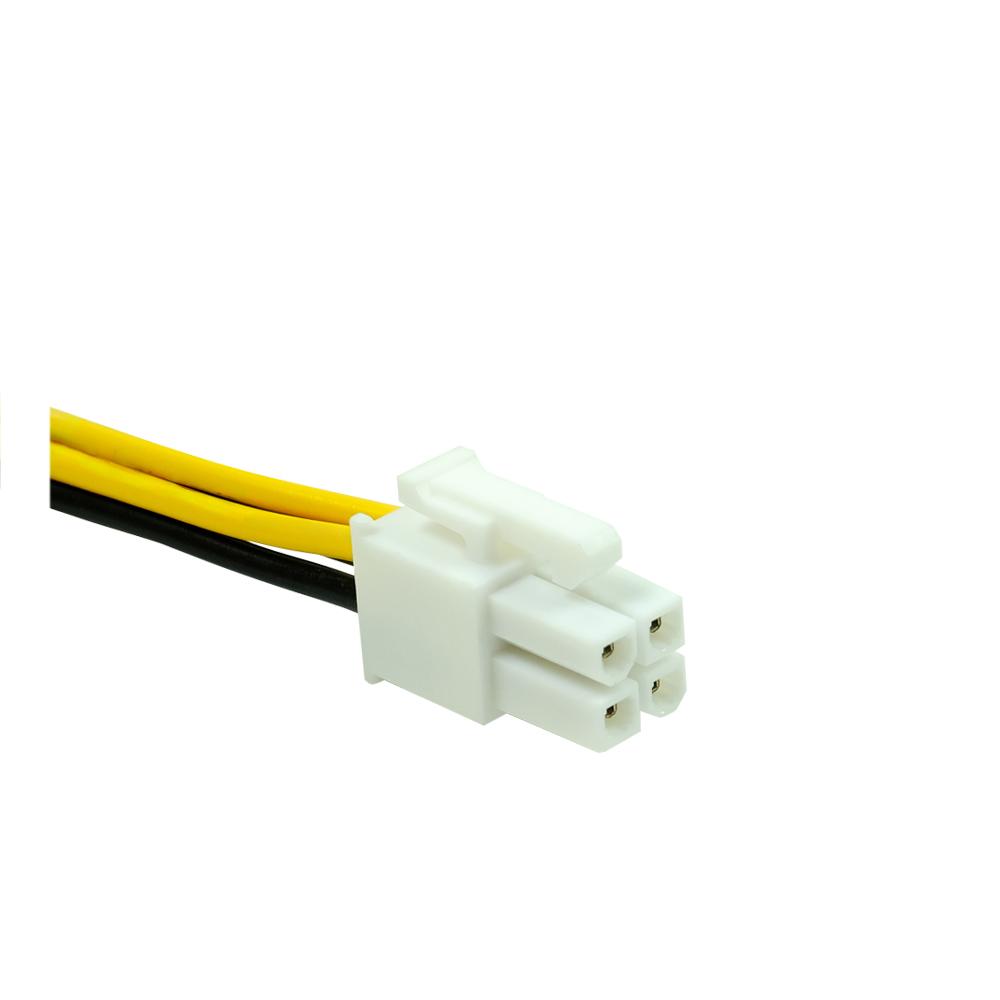

Side 3: 39-01-2045, L = 300 mm

Cable: AWG18

UL1007

Custom configurations are available anytime – reach out to us and design your connection based on your specific requirements!

Matching pin headers: C4255WVA-FK-2X05PN0BT1NS3B, 10157976-1022BPLF, GAP-APOW0106-P001A01, HMBA050-K3FF2-4H, AC2211-0009-003-HH

Socket connectors identical to: C4255HF-2X05PN0BNPNS3G, 10158000-101LF, ABA-WAF-903-P01, AB9001-0009-005-HH

Supported boards: K3832-Q mITX, PRO H610M 12VO
