Adapter for TTL LCDs

ADA-DF9-40

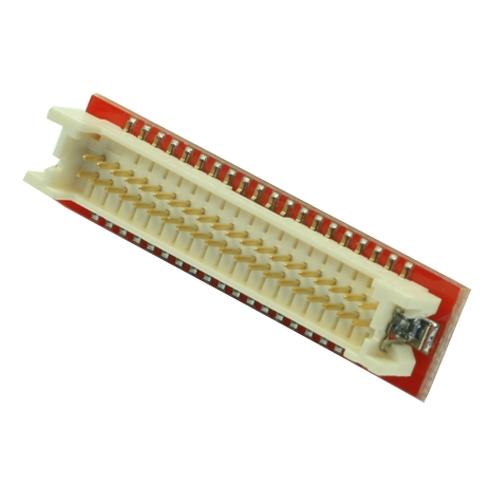

The adapter board for DF9-31S-1V / IL-310-31S is the perfect solution for an easy and reliable connection of displays at 640x480 resolutions. It is suitable for use in a variety of electronics projects and is compatible with 31-pin flat ribbon cables. This adapter board ensures stable and efficient signal transmission and can be used with displays from various manufacturers. Conversion of DF9-31S-1V / IL-310-31S Preferably used for 640x480 resolutions Standard 31-pin flat ribbon cable, AWG28, R=1.27 mm

Dimensions: 32 mm (L) x 8 mm (W) x 10 mm (H)

Temperature range: -20 °C to 85 °C

Weight: 2 g

With its compact size of 32.2 mm x 8 mm, this adapter board can be used in almost any application. It serves as a connection adapter and provides a reliable solution for connecting displays and other components.

Safety Notice: Please ensure that CN2 is connected to the cable before attaching the board to the display (risk of breakage!). When disassembling, the process should be reversed.

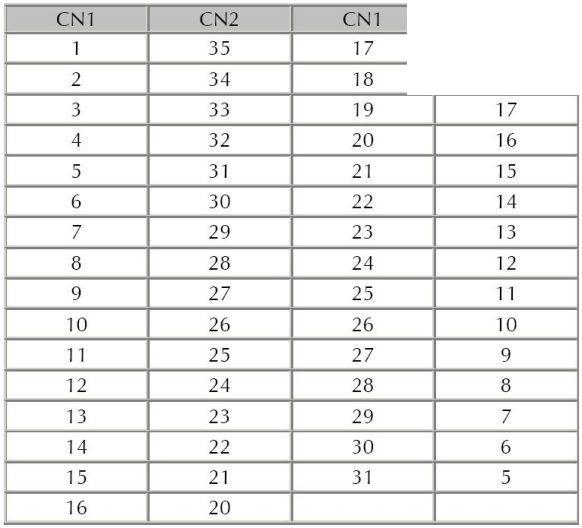

electrical connections ADA-DF9-40_Pinout.jpg
