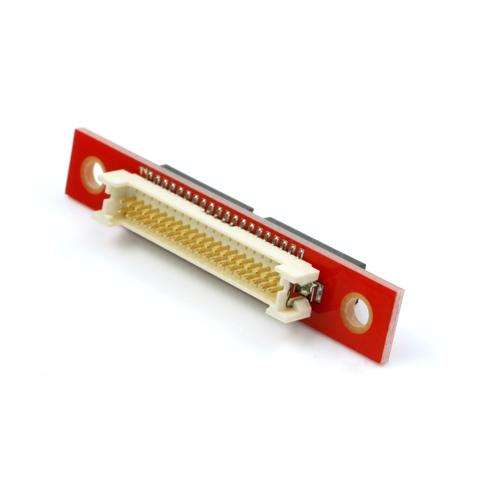

Technical drawing Adapter for mounting KONTRON LCD boards ADA-886-LVDS-SCREW Technical drawing This adapter is designed to establish a mechanical and electrical connection with KONTRON 886-LCD boards. It has a very small panel thickness. The connection between ADA-886-LVDS and KONTRON LCD boards is provided by a special flexible 40-pin ribbon cable. The flexible ribbon cable can also be manufactured with a connector according to your specification (e.g. connector on LCD display). Description: connector board for KONTRON 886LCD Boards

suitable for: 886LCD-M/Flex

886LCD-M/ATX 886LCD-M/mITX very small panel thickness C44-40 strip, 40 pin. R = 1.27 mm, suitable for A32-40 housing on DF13-40DP-1.25C, R = 1.25 mm
