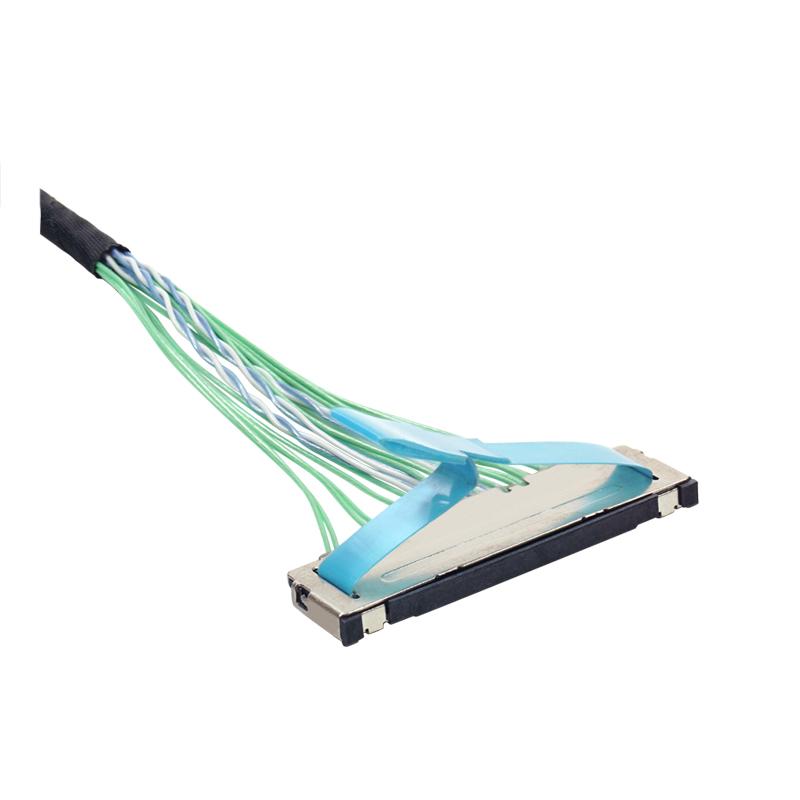

Technical drawing ACES 50399 Series Technical drawing Here we offer you the new ACES  plug of the 50399 series in 0.50 mm pitch in a 40 pole version. The ACES connector is preferably used for LVDS and eDP applications and is designed for single strands as well as for coaxial or micro-coaxial and teflon cables. The mating height of the plug connector is 2 mm. It is suitable for AWG36 to AWG42 wires. LVDS cables are used in numerous devices, including flat screen tv, infotainment systems in motor vehicles, in digital or industrial cameras and in industrial image processing, as well as in printers, scanners, copiers, notebooks, tablets, computers and many other communication systems. LVDS offers excellent transmission characteristics with clear image reproduction.

connector: ACES 50399

pitch: 0.50 mm

height: 2.00 mm

AWG#: 36 ~ 42

mates with: ACES 50398

mating cycles: 30, 40, 50

RoHS compliant

operating temperature: -55 ℃ ~ +85 ℃

Electrical characteristics:

voltage: 50 V AC

current rating:   AWG32 = 0.35 A, AWG34 = 0.35 A, AWG36 = 0.30 A, AWG40 = 0.25 A, AWG42 = 0.20 A

contact resistance: max. 60 mΩ

dielectric withstanding voltage: 150 V AC

insulation resistance: min. 100 MΩ

The ACES connector can be processed as:

strand wire: AWG32

micro coaxial wire: AWG36, AWG40, AWG42

cables with teflon insulation (FEP, PTFE): AWG34

Cable is used for the following CPU boards:

MS-98E6

MS-98G2

MS-98H3

MS-98F1

MS-98B1

Suitable connector on PCB:

50398-030

50398-040

50398-050

50406-030

50406-040

50406-050

Suitable connector for cable assembly:

50399-030

50399-040

50399-050

50407-030

50407-040

50407-050

50412-030

50412-040

50412-050
